And the water tankers manufactured by CEEC TRUCKS can be classified into DongFeng water truck, HOWO water truck, FAW water tanker, ISUZU water truck, YUEJIN cistern truck, JAC water truck, JMC water truck, FOTON water truck, etc.

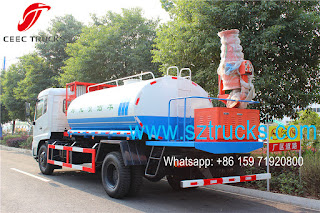

Hot sale dongfeng dust suppression truck, dongfeng pesticide spraying truck, dongfeng water tanker with air-assisted sprayer
| Items | Units | Parameters |
| Product model and name | Dust suppression truck (pesticide spraying truck) | |
| Chassis model | DFL1160BX | |
| manufacturer | Dongfeng company | |
| Engine model | B190 33 | |
| Manufacturer | Dongfeng Cummins | |
| Displacement/power | Ml/kw | 5900/140 |
| Emission standard | Euro 3 | |
| Overall dimension | mm | 8630*2400*3915 |
| Wheelbase | Mm | 4700 |
| Gross weight | Kg | 16000 |
| Curb weight | kg | 9555 |
| Tanker volume | cbm | 6.6 |
| Fuel type | Diesel | |
| Air conditioner | Yes | |
| Tyre specification | 9.00R20 with quantity 6+1 units | |
| Seating person | 3 | |
| Watering function | With a pump of suction and discharging function; working platform, the pressure nozzle, for green sprinkler is stalled on it. (the shape of the spray gun is adjustable: straight shape, heavy rain, moderate rain, drizzle continuous regulation, the max range is up to 30 m.) with fire connectors, self-flow valve, al filter, the water level gauge, which has the function of watering and fire fighting. | |
| Tanker | The tanker body adopts 5mm thickness high quality carbon steel, and the tanker body has an anti-corrosion treatment. | |
| Spraying machine performance parameters (model: YL80) | Matching power generator set | 40KW diesel generator set(other different power) |
| Fan power | 15KW | |
| Pump motor power | 5.5KW | |
| Spray pump flow | 20-60L/min | |
| Working pressure range | 1.5-3mpa | |
| Fog range | 50-150um | |
| Static wind vertical range | 30-45m | |
| Static wind horizontal range | 50-65m | |
| Supine angle range | -10 degree to 90 degree(remote control) | |
| The turn degree of air duct | 360 degree(remote control) | |
| Optional | 50m long soft water pipe, with reel and drug gun | |
Other models Spraying machine show as below:
12. All-Wheel-Drive Trucks
Previous customers visiting our company:
