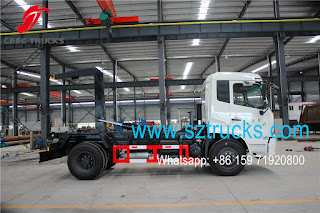

Dongfeng Tianjin roll-on and roll-off garbage truck, is with the garbage volume of 10Tons, D530 flathead one row driver cab, Cummins 180hp diesel engine, 6 speed gearbox, 5ton front axle/9ton rear axle, power steering, 9.00-20 tyre, with air-conditioner, etc.
This kind of container detachable garbage truck realize one truck with several garbage van containers. There are several wastes collecting containers at every wastes sites, realizing one truck with several wastes containers, etc.
| Truck model | CEEC5160ZXXD roll-on and roll-off garbage truck | Tyre model | 900-20 |
| Overall dimension(L*W*H)(m) | 7300×2470×2930 | Wastes container volume | 12 cubic meters |
| Total mass(kg) | 16000KG | Roll-on speed | ≤15 seconds |
| Curb mass(kg) | 6305 KG | Roll-off speed | ≤15 seconds |
| Loading capacity (kg) | 9500 KG | Self-dumping speed | ≤18 seconds |
| Fuel type | Diesel | Fittings | one detachable container |
| Engine | Cummins 180hp | Chosen | Chosen several detachable containers |
Main parameters of dongfeng roll-on and roll-off garbage truck as below
| Main parameters | |||
| Product name | Hook lift garbage truck | Overall dimension(mm) | 7300×2470×2930 |
| Total mass(Kg) | 16000 | Front/rear suspension(mm) | 1430/1370 |
| Rated mass(Kg) | 9500 | Wheelbase(mm) | 4500 |
| Curb mass(Kg) | 6305 | Max speed(Km/h) | 85 |
| Driver cab person | 3 | Axle nos. | 2 |
| Approach/departure angle (°) | 20/16 | Axle load(Kg) | 6000/10000 |
| Chassis main parameters | |||
| Chassis model | DFL1160BX5 | Manufacturer | Dongfeng |
| Steel spring | 8/10+8 | Tyre nos. | 6 |
| Fuel type | Diesel | Tyre specification | 9.00-20 |
| Front tread(mm) | 1880 | Rear tread(mm) | 1860 |
| Emission standard | Euro Ⅳ | ||
| Engine model | Manufacturer | Displacement (ml) | Power (Kw) |
| ISB180 | Cummins | 590 | 132 |
