SINOTRUK mini refrigerator truck with 8CBM capacity hot sale

SINOTRUK mini refrigerator truck with 8CBM capacity hot sale

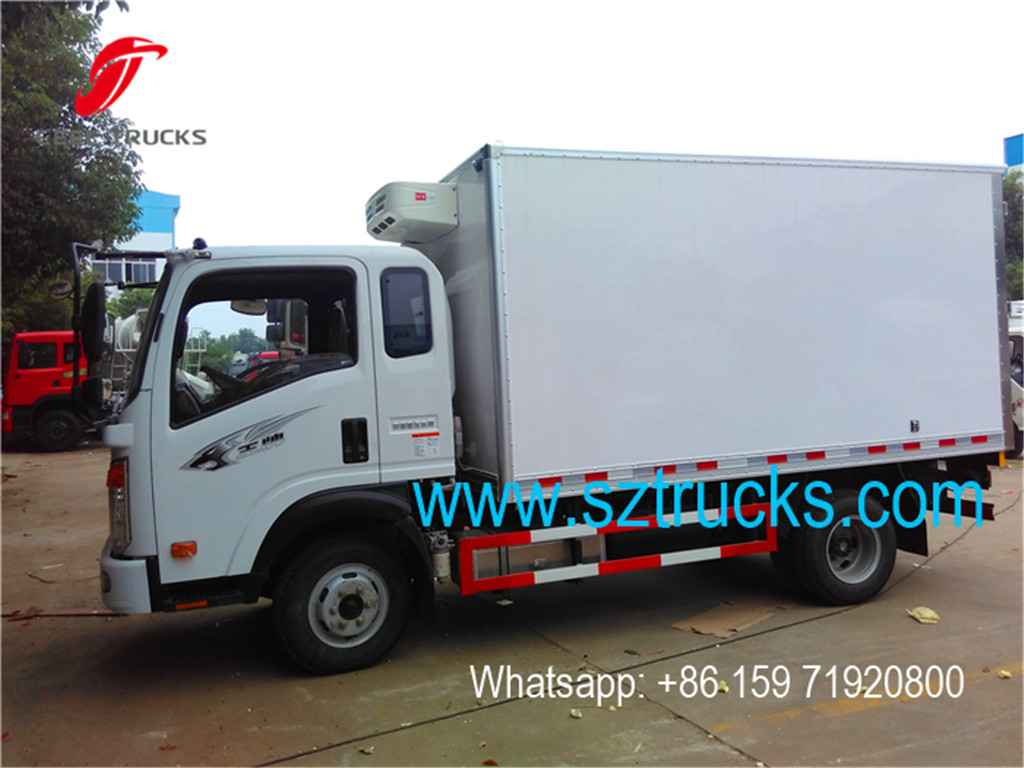

CEEC TRUCKS INDUSTRY CO., LIMITED produced refrigerated truck adopts SINOTRUK mini chassis, which have single row driver cab, YN33CRD1 140hp diesel engine, 7.00-16 tyre, 1058 front axle/rear axle, 5S100 gearbox, power steering, air-cut braking, exhaust braking, etc. And the overall dimension(L*W*H) is 5995*2095*3025(mm), and the insulation body van dimension(L*W*H) is 3700×1900×1850mm.

Following show as form:

SINOTRUK refrigerator truck main parameters
Product name	SINOTRUK  refrigerator truck	Overall dimension (L*W*H)(mm)：	5995x2095x3025
Chassis model	CDW1040	Insulation van dimension(mm)：	3700×1900×1850
Total mass(kg)	4375	Approach/departure angle(° )	24/23
Rated mass(kg)	1130	Front/rear  suspension(mm)：	1175/1460
Curb mass(kg)	3050	Max speed(km/h)：	90
Axle load (kg)	1900/2475

Chassis main parameters
Truck model	CEEC5060XLCJ	Fuel type	Diesel
Axle NO.	2	Front tread(mm)：	1570
wheelbase(mm)：	3360	Rear tread(mm)：	1540
Tyre nos.	6	Steel spring	3/5+3,9/10+8
Tyre specification	7.00-16LT 6PR

Engine main parameters
Engine model	Manufacturer	displacement（ml）	power（kw）
YN33CRD1	Yunnei	3298	85
Emission standard	Euro 4	Fuel type	Diesel

Chosen device
Insulation body van material (exterior)	Fberglass, colorplates, stainless steel, aluminum alloy steel,	Meat hook refrigerated truck	Van top with Slide guides and stainless steel meat hooks
Interior van	Fberglass, colorplates, stainless steel, aluminum alloy steel,	ventilation system	Bottom floow with vent slots, etc.
PU foam thickness	50mm, 80mm,	Temperature gauge	Yes
Choose to install  side doors	Single side door, double side doors.	Cooling unitheating unit	Independent cooling unit, dependent colling unit, and double temperature units.
