2014年9月28日星期日

Best 40 feet flatbed container transport semi-trailer truck with BPW axle & JOST landing leg special for export



Compared with many competitors in the world, CEEC has many advantages in researching, producing, selling & shipping.

For researching: the world leading engineer department & operating department which make our company operated more smoothly and efficiency. Also the R&D department learns from all over the world, absorb what is good and desert what is bad. Accumulate much precious experience.

For producing: Imported equipment with German technology, abundant production experience, all these advantage made the production more quickly and accuracy. And can totally meet customers’ requirement.

For selling: Our company always takes everything into consideration for customers, we all know that widely selling needs best after-sale-service to support. For our company after-sale-service is much more important, customer can not only purchase different kinds of semi-trailer which they really need, but also can enjoy world leading after-sale-service even in their domestic countries. For our after-sale-service is all over the world.

For shipping: We order confirmed, the most important thing that customers usually care about is when they can receive their goods. For some company, they usually ask small shipping company to transport produced semi-trailers, however, the cost maybe relatively expensive, also very dangerous for trucks. For our company, we have a long-term business relationship with powerful shipping company, whenever customer confirmed the Purchase Order we will immediate make a delivery plan with shipping company, also powerful shipping company will have freight relatively cheap on condition that the order is huge, besides, we can 100% guarantee the shipment for Semi-trailer safety.

As the most professional semi-trailer manufacturer in China, we always produce best semi-trailer truck with reliable quality, huge quantity, high performance and reasonable price.

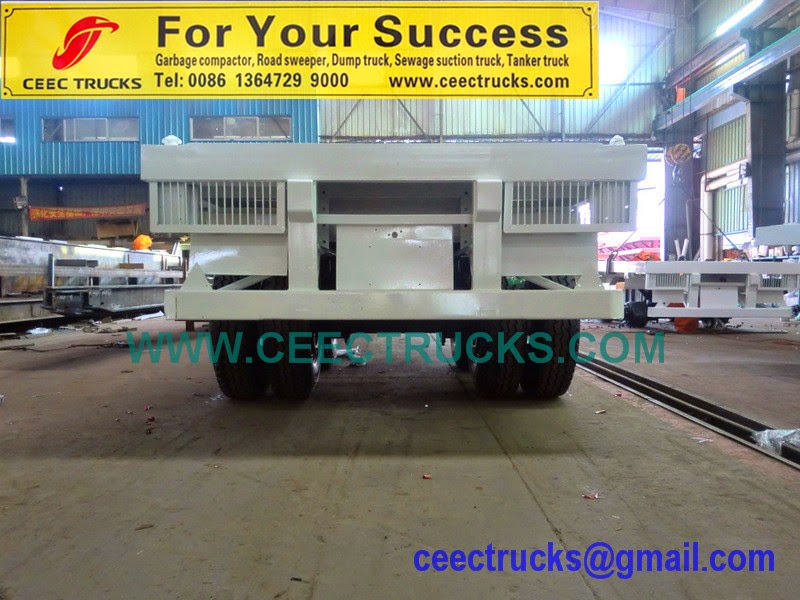

Following show 40feet flatbed container transport semi-trailer truck

Tare Weight

About 7.5T

Dimension

12500mm*2490mm*1575mm

Loading Capacity (T)

≤ 40 T / ≤ 30T

Axle

3 axles/ 2axles, 13 T FUWA /Huajing Brand

Rim

9.00-22.5 (special for export market)

Tire

12.00R22.5 Chengshan Brand 13pieces/ 9 pieces

Suspension

Mechanical suspension (America Type)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer

King pin

JOST brand 3.5inch bolts type

Support leg

China brand 28Tons (Double speed)

Main beam

Height: 500mm, upper plate is 14mm, middle plate is 8mm,

Down plate is 16mm; Material is Q345B Steel.

Side beam

16mm channel steel (Material is Q235steel).

Platform

3mm diamond platform

Side wall

Height is 800mm, you can choose freely.

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks

ABS

Without

Twist Locks

Eight pieces (Lifting type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.


Previous Export for customers' reference:


















































Contact Us To Get More Informaction:

Tel: 0086 136 4729 9000
0086 159 7192 0800
Fax: 0722 3258330
Email: ceectrucks@gmail.com
Web: www.ceectrucks.com

2014年9月17日星期三

Best CCC / ISO tanker container 2/3 axle plastic-lined steel chemical liquid tanker semi-trailer, semitrailer for HCL, NaOH, NaClO, H2SO, etc.


The containers are made of different materials according to requirements of different customers; which adopt separately stainless steel, carbon steel, polyethylene and polypropylene, etc. according to the different medium contained; they are fabricated with the advanced technology domestically, with amazing design and durable.

Heating asphalt transport tank- type container
Suitable for storage and transportation of asphalt, emulsified asphalt, modified asphalt, PMB solution and heavy fuel

In accordance with Transportation Standard of 20ft and 40ftISO tank containers

Max capacity of tank 20~40 (m3)

Max weight of tank 3900~7700(kg)

Dimensions of tank 6058*2438*2591(mm), 12192*2438*2591(mm)

Application pressure of tank 0.1(Mpa)

Application temperature of tank 250(Celsius degree)

Furnished at the top with nitrogen valve to prevent asphalt aging High-quality heat-insulated shell and framework Selectable hot oil heater pipe can centralize the system to use oil furnace for indirect heating, or use flues in the combustor or burners for direct heating Pump system selectable


More advantage for reference:

1. High thermal efficiency, energy saving. Adopt hot pipe (super conduct) fast heating, very small thermal loss. Hot pipe is a component that owns the performance of high thermal conductivity but heat resistance is almost zero.

2.High thermal utilization, Some of our patents like partial heating, floating asphalt absorbing and automatic high temperature asphalt supply, etc. are applied. These facilities reach to the condition that heats the certain quantity of asphalt according to the individual need, and prevent energy from wasting due to the repeated heating.

3. Fast temperature rises; it can meet the off-hand need.  And equipment can heat the small quantity of Asphalt to the road maintenance in short time; it also can continuously supply the high temperature asphalt to the asphalt plant.

4. Compact structure. The product has a compact structure, integrated with storage, dehydration and temperature rising, heating, transportation, preheating piping system.

5. Automatic control, the temperature can be adjusted and controlled and easy to operate.

6. Strong contaminant resistance for heating surface, less maintenance, long life.

7. Jet agitation is applied to asphalt heating, which makes the heating even.

8. The equipment is of environment protection, the grade is 1.



Basic Technical Specification for your reference, more info please contacts us:

Model
DTC-10
(10 feet)
DTC -20
(20 feet)
DTC -30
(30 feet)
DTC -40
(40 feet)
Capacity(m3)
10
20
30
40
Output (t/h)
5-10
5-10
5-10
5-30
Thermal Power
(KW x104)kcal/h
300
300
350
350
(25)
(25)
(30)
(30)
Fuel consumption/ton (kg)
Gas 5-6
Gas 5-6
Gas 5-6
Gas 5-6
(Coal 15-30)
(Coal 15-30)
(Coal 15-30)
(Coal 15-30)
Hours for asphalt out in tank-in-tank first time
30ms
30ms
30ms
30ms
Power(KW)
9
9
9
9
Weight(kg)
----------
----------
----------
----------
Outline Dimension(m)
Length x width x height
3x2.4x2.6
6x2.4x2.6
9x2.4x2.6
12x2.4x2.6
Pump Capacity(t/h)
4-30
4-30
6-30
6-30
Insulating   Properties   (Temperature Drop /h)
<1
<1
<1























More info for customer need to know:

1. Factory direct sale, we are professional manufacturer

2. Specialized in Trucks over 10 years

3. A competitive price with reliable quality

4. with CCC, ISO9001, SGS, ASME

5.Chassis is optional: SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,ISUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8,

12 x 4/10 x 4/8x8 /8x6 / 8x4 /6x6 /6x4/ 6x2/ 4x4 /4x2  240HP ~480HP  tractor with semi-trailer /full trailers


Any inquiry from you will get full support from us!!

Previous Clients Build Samples:



Contact Us To Get More Informaction:

Tel: 0086 136 4729 9000
       0086 159 7192 0800
Fax: 0722 3258330
Email: ceectrucks@gmail.com
Web: www.ceectrucks.com
