China North Benz
6x2 towing tractor truck, which is also called “xiaosanzhou” in
Chinese. BeiBen 6x2 prime mover use
rear single shaft drive, and compared with rear double shaft drive 6x4, the
former can be much cheaper. This Benz 6x2
tractor truck has the wheelbase 1500+2500, Chinese famous engine
manufacturer WEICHAI, WP10.270 & WP10.290 engine, can meet clients
different requirement.
Following form shows the Technical Specification for 4types China best North Benz 6x2 Tractor truck / Prime Mover:
Name
|
ND4242L25J
|
||||
Sales No.
|
2427S
|
2427S
|
2429S
|
2427S
|
|
Overall dimensions(LW/H mm)
|
6495X2495X3110
|
6495X2495X3110
|
6495X2495X3110
|
6495X2495X3110
|
|
Front/Rear Track(mm)
|
1995,1995/1800
|
1995,1995/1800
|
1995,1995/1800
|
1995,1995/1800
|
|
Approach/Departure angle
|
26/35
|
26/35
|
26/35
|
26/35
|
|
Front /Rear overhang(mm)
|
1410/1085
|
1410/1085
|
1410/1085
|
1410/1085
|
|
The minimum ground clearance(mm)
|
339
|
339
|
339
|
339
|
|
The minimum diameter of turning(m)
|
18.6
|
18.6
|
18.6
|
18.6
|
|
wheel base(mm)
|
1500+2500
|
1500+2500
|
1500+2500
|
1500+2500
|
|
Max speed(km/h)
|
85
|
85
|
85
|
85
|
|
Maximum gradability
|
30
|
30
|
30
|
30
|
|
Curb weight(kg)
|
8000
|
8000
|
8000
|
8000
|
|
Total Mass(kg)
|
24000
|
24000
|
24000
|
24000
|
|
Trailer weight(kg)
|
31200
|
30800
|
34000
|
33600
|
|
Engine
|
Type
|
WP10.270
|
WP10.270NE31
|
WP10.290
|
WP10.290NE31
|
Max power(wrpm)
|
199/2200
|
199/1900
|
213/2200
|
213/1900
|
|
Max torque(Nm/rpm)
|
1100/1200-1600
|
1270/1200-1500
|
1160/1200-1600
|
1340/1200-1500
|
|
Displacement(L)
|
9.726
|
9.726
|
9.726
|
9.726
|
|
cylinder diameterX stroke (mm)
|
126X130
|
126X130
|
126X130
|
126X130
|
|
minimum specific fuel
consumption(g/kw.h)
|
195
|
195
|
195
|
195
|
|
Saddle
|
type
|
BH-QD9(ø90 single-track )
|
|||
saddle ground clearance(mm)
|
1473
|
1473
|
1473
|
1473
|
|
Front clearance radius(mm)
|
2090
|
2090
|
2090
|
2090
|
|
Rear clearance radius(mm)
|
2000
|
2000
|
2000
|
2000
|
|
Fuel Tank(L)
|
300
|
300
|
300
|
300
|
|
clutch
|
Single-plate dry coil-spring
clutch, diameter 420mm,
hydraulically
operating with air assistance
|
||||
Brake system
|
Brake system
|
double circulation air brake system
|
|||
Assistant brake
|
Engine exhaust brake
|
||||
Park brake
|
Potential springs pressing on middle and rear wheels
|
||||
Steering system
|
Model
|
ZF 8098,whole circulation in ball
type, hydraulic boosting
|
|||
Frame
|
Fish belly shape, variable width,
variable sections
|
||||

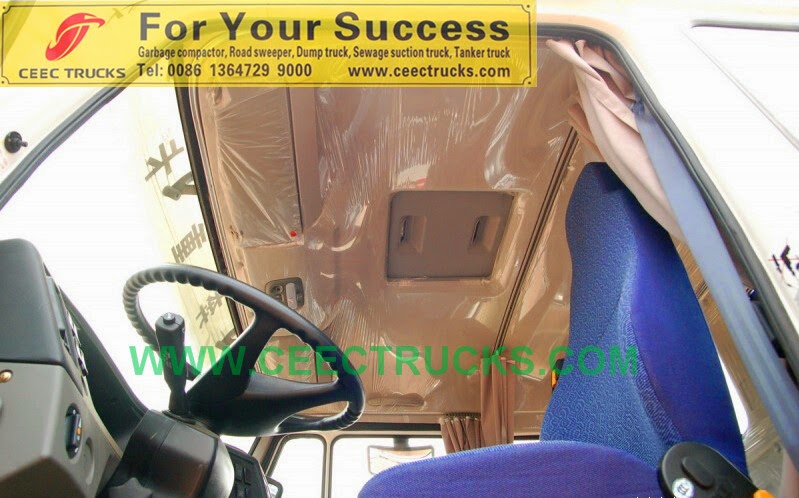

Cab
|
Long cab with sleeper (High roof with two
sleeper),Can be tipped forwardly;
|
||||
Front axle (Mercedes Benz
Technology)
|
VL4/110D-6.5
|
||||
Middle axle (Mercedes Benz Technology)
|
HD7/016DGS-13
|
||||
Rear axle (Mercedes Benz Technology)
|
HL7/015DS-13
|
||||
Front overhang
|
Double
steering front axle, leaf spring
|
||||
Rear overhang
|
leaf spring
|
||||
Tire
|
12.00-20/R20
11.00-20/R20
|
||||
Application
|
highway
transportation, Logistics transportation
|
||||
