How to choose most suitable cesspit emptier from China

How to choose most suitable cesspit emptier from China


What is Cesspit Emptier?
Equipment is designed to collect, by suction, and transport the sewage and sludge. Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO. There is a subframe made from 'U' profiles and steel is mounted to the chassis with mounting plates. Tank is manufactured from thick sheet steel. Front end is covered with convex plate and welded to the body at both sides. There are baffle plates mounted inside the body on the reinforcing rings. Tank is mounted on the subframe at a required slope with flexible mounting elements. At the rear there is an acid resistant rubber gasket placed in a full diameter steel housing to prevent leaking from the tailgate. Tailgate is connected to the body with top hinges with bronze bushings. tailgate is opened upwards by a hydraulic cylinder. There are four or five wheel clamps around the tailgate to provide efficient sealing. There is a ball valve and aluminium quick coupling at the tailgate to which the suction hoses are connected. There is a hydraulic hand pump with control valve on it to open the tailgate easily. It is placed rear right of the equipment. There is a flow control valve in the installation to prevent sudden dropping of the tailgate. Vacuum pump is powered by the PTO controlled from the cab. There is a vacuum meter on the installation.


Detailed Illustrations As Below:

1. Rear Outlet Valve: The valve for which discharge liquid waste from tank. The valve material is high strength steel with one-time molding technology.
2. Optional Rear Window: This part is optional depend on customers' requirement. The material for transparent window is glass or corrosion resistance plastic for optional, which can help driver know when to stop suction.
3. Vacuum Overflow Valve: which can help protect the vacuum system.
4. Suction Pipeline: Diameter for the pipeline 100-125mm. Which help suction liquid waste from underground.
5. Water Level Window: The same function as Rear Window, which can indicate the inside liquid capacity and help operator know when to start and when to stop.
6 & 7. Hydraulic Opening and Hydraulic Lifting: These hydraulic system can help the Cesspit Emptier realize Automatic Operation.
8. Sealed Ring: This can help hydraulic cylinder from being damaged which operating.
Vacuum Suction System Kit:
9. Vacuum Pump: The heart of the Vacuum Sewage Suction Truck, which can provide vacuum suction power for truck working. We have famous domestic brand and original imported brand for optional.
10. Oil-Gas Separator: Mainly used for vacuum pump lubrication. While working the machine oil and air mixed together, the Oil-Gas Separator help detach the oil and air, then machine oil back to Vacuum Pump and air released. This can protect the pump also can shroten the warranty period.
11. Water-Gas Separator: There is rubber ball inside the Water-Gas Separator, which can help the separator act as One-Way Valve. When pump stop working, the separator can prevent the gas and oil backflow into pump to damage the pump.


Technical Drawing for CEEC produced Cesspit Emptier:

Famour brand DFAC 8000liters dust suppression trucks low price hot sale

Famour brand DFAC 8000liters dust suppression trucks low price hot sale

Manufacturer supply multifunction dust suppression truck,is also called  multifunction watering truck, dust suppression truck,  Mine sprinkler, etc., widely used in road rinsing, landscaping,  etc., It possess multiple features such as watering, dust suppression, pestcide spraying, etc.

As profession trucks manufacturer, following show more details about the CEEC TRUCKS produced anti-dust vehicles.



Technical Specifications as below:

Main specification
Product model and name	CEEC5160TDY  Dust Suppression Trucks
Gross weight(Kg)	16000		Drive type			4x2
Curb weight(Kg)	8185		Overall dimension(mm)			8990X2500X3680
Approach/departure angle(°)	25/14		Cab seats			3
Axle No.	3		Front/rear hang(mm)			1430/2910
Axle load(Kg)	5000/10000		Wheelbase(mm)			5100
Max speed(Km/h)	90
Chassis specification
Chassis model	DFL1120		Manufacturer			Dongfeng Motor Co., Ltd
Brand name	Dongfeng		Dimension(mm)			8990x2500x3680
Tyre specification	10.00-20		Tire No.			6
Steel spring number	8/13,9/10		Front track base(mm)			1940
Fuel type	Diesel		Rear track base(mm)			1860/1860
Emission standard	Euro 3		Transmission			8 forward gear
Cab	One and half row,3 person allowed with A/C and power steering
Engine model	Engine manufacturer				Displacement(ml)		Power(Kw)
B210 33	Dongfeng Cummins Engine Co.,Ltd				5900		155(210HP)
Tank body
Tank capacity(m³)		8		Tank material			QB235 Carbon steel
Main Characteristic
The truck is equipped with electric pumps, piping , flow control system, constitute diesel generator sets, electrical control box, remote control devices, lifting systems, spray arms and nozzles. The high pressure atomizing water into fine particles of about 50μm, through the mist to the remote air guns within a radius of 100-120 meters, 5 minutes work to achieve coverage area of over 45,000 square meters, is locally reduced PM2 .5, PM10 particulate matter exceeded the ideal technology caused haze of pollution, is a more advanced, more scientific, less energy, purifying effect significant new air purification technology.

HOT sale refuse collection tanker trucks bottom price sale

The garbage compactor truck manufactured by CEEC TRUCKS INDUSTRY CO., LIMITED is constructed with 12#low alloy steel and 5mm, 4mm, 10mm steel. The body is mounted on the chassis by the truck beam. The body floor is fully sealed without any leakage. All the waste water can go directly into the sewage tank (which located under truck body), so as not to corrode the body and the chassis. Moreover, it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution. The garbage tank compression the waste by a hydraulically powered mechanism, which employs a moving plate or shovel to scoop the wastes out from the loading hopper and compress it against a moving wall.

There are three kinds of mechanism options available to the customer, barrel turnover mechanism, panel turnover mechanism and tipping mechanism. By the use of hydraulics, the barrel is locked during the overturning process, which is very safe and reliable.

More pictures of hot sale dongfeng 3cbm-5cbm refuse garbage truck manufactured by CEEC TRUCKS:




Product name	DFAC arbage Compactor Truck Model: CEEC5060ZYSS
Overall dimension(L*W*H)(mm)	6320*2050*2560
Wheelbase(mm)	3300
Gross weight(kg)	6495
Payload(kg)	3500
Curb weight(kg)	3665
Front overhang/rear overhang(mm)	1032/2138
Approach/departure angle	19/10
Axle load(kg)	2825/3670
Chassis model	EQ1060TJ20D3
Tire	7.00-16
Tire nos.	6+1
Front tread(mm)	1506
Rear tread(mm)	1466
Engine model	CY4102-C3F/95hp

High quality DONGFENG 14000liters garbage compactor trucks low price wholesale

High quality DONGFENG 14000liters garbage compactor trucks low price wholesale

Advanced Features for CEEC TRUCKS produced Refuse Compactor Trucks:

1.    We CEEC TRUCKS are manufacturer, specializing in producing garbage compactor truck many years with good reputation.

2.    The CEEC 14CBM garbage compactor with swing arm system truck control system PLC (programmable logic controller) originally imported from Italy.

3.    Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection..

4.    Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.

5.    Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.

6.    CEEC 14000L Compression Garbage vehicles adopt double direction compression techniques, which can make the whole compression work smoothly and efficiently. All the garbage compactor trucks are easy to operate and maintenance!

7.    Different hopper can be provided to satisfy our customers. And the Hopper is hydraulically and automatically locked when closed.

8.    Controlled by the integration of machinery, electricity and hydraulic, with manual control system, crush the garbage through filling, pushing and spading, finally make the waste compressed in the dustbin.

Detailed parts shown for this CEEC TRUCKS produced DONGFENG 14CBM Refuse Compactor Trucks:

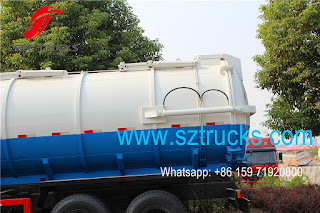

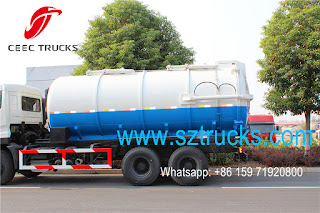

DONGFENG 16CBM vacuum sewage suction tanker trucks bottom price sale

DONGFENG 16CBM vacuum sewage suction tanker trucks bottom price sale

CEEC TRUCKS INDUSTRY CO., LIMITED produced DFAC vacuum sewage suciton tanker trucks consist of vacuum suction sewage pump, power take off, transmission shaft, water and gas separator, oil separator, multiple directional control valves, tanks, sewage discharge valve, depending on the Pollution windows, vacuum pressure gauge, pipe systems and hydraulic systems.

Item	Descriptions				Spesifications and Types
Vehicle	Brand				CEEC TRUCKS
	Overall Dimensions L*W*H				9600*2500*3690mm
	Weights	GVW.			25000kgs
		Kurb Weight			12305kgs
		Rated Payload			12500kgs
Chassis	Chassis Brand				Dongfeng
	Drive Type				6x4
	Steering				LHD
	Engine		Brand		DongFeng engine
			Power		180Kw /245HP
			Emission Level		EURO 2 or EURO 3 or EURO 4
	Performance		Max. Speed		90km/h
	Wheel base				4350+1350 mm
	Tyre Specifications				10.00-20,10.00R20,11.00-20,11.00R20
	No. of Tyre				10 pcs (1 spare tyre included)
	Cab		Cab Capacity		2 persons allowed
Body Superstructure	Tank		Capacity		14-16 m³
			Material		5mm or 6mm high quality carbon steel
	Vacuum pump				China famous vacuum pump
	Vacuum rate				99% thorically
	Suction head				6m
	Rotation speed				500 rpm,low noise,high efficiency
	Basic Equipments			Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose
	Paint			Tank color is according to client’s requirements.
Optional Equipments	Italy or Spain vacuum pumps
	Stainless steel
	Anti-rust coating inside tank
