Material applied with high anti-wear metal, long lasting. The CEEC garbage compactor truck with self-lock and security stick is used to protect loading organ, safe and stable. Great capacity of sewage bin in the garbage compression truck is combined to sewage-leading collector, which disposes leaking problem when collecting.
As the most professional garbage compactor truck manufacturer in China, CEEC TRUCKS export 8-10CBM garbage truck over 10years with good reputation. In China, East or West, CEEC is the BEST!

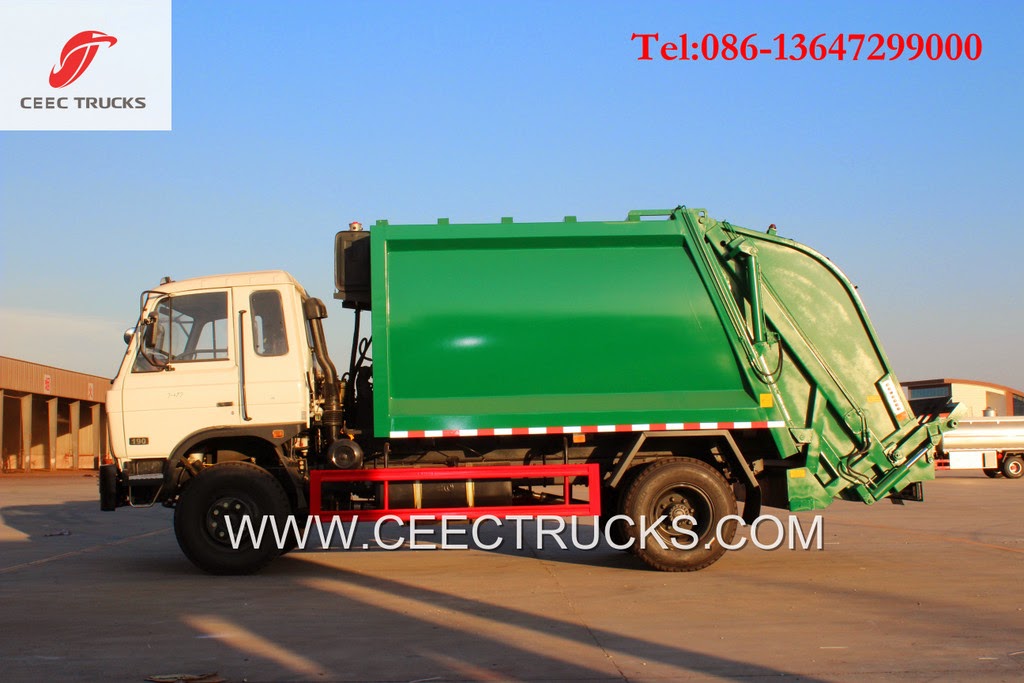

Following is 8CBM waste management truck as sample:
| Compactor Body |
Smooth Body (Optional)
| ||
| Body Capacity (m3) |
8
| ||
| Hopper Capacity (m3) |
1.8
| ||
| Gate size (width x height) (mm) |
1380 x 1350
| ||
| Operation Mechanism |
Electrically controlled hydraulic
| ||
| Discharging System |
Horizontal ejection
| ||
| Loading Time [one cycle] (sec) |
25~30
| ||
| Discharge Time (sec) |
30~35
| ||
| Hydraulic System Working Pressure (Mpa) |
16.2
| ||
| Compression Ratio |
1:4
| ||
Plate thickness
(mm) | Body | Floor |
4
|
| Roof |
5
| ||
| Side |
4
| ||
| Hopper | Side(upper) |
5
| |
| Side(lower) |
5
| ||
| Bottom |
5
| ||
| Discharge plate |
4
| ||
| Press plate |
5
| ||
Chassis Specification
| |||
| Engine | |||
Model
|
4HK1-TC
| ||
Type
|
Four-cylinder, water-cooled, mechanical injection
| ||
Rated power (kw)
|
129
| ||
| Transmission | |||
Model
|
MLD6
| ||
Type
|
6 Forward & 1 Reverse Speed
| ||
| Travelling | |||
Drive Model
|
4x2
| ||
Steering Wheel Position
|
Left hand drive
| ||
Max. Travelling speed
|
90
| ||
| Dimension | |||
Overall Size (mm)
|
6300 x 2050 x 2500
| ||
Tyre Size
|
8.25-16
| ||
Wheel Base(mm)
|
3815
| ||
| Weight | |||
Curb Weight (kg)
|
6760
| ||
Payload Capacity (kg)
|
8000
| ||
| ◆ 8 CBM Garbage Compactor trucks Super structure: Smooth side wall with suitable reinforcements in left, right and top. Front frame with strong beams to support the main hydraulic cylinder (push-out-plate cylinder).Beams welded by sub-merge wielding machine.
◆ 8 CBM Garbage Compactor trucks Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates.
◆ 8 CBM Garbage Compactor trucks Ejection Plate: Moves on rails situated inside the body with easy replaceable polyamide shoes, with one main double acting hydraulic cylinder to move the push-out-plate.
◆ 8 CBM Garbage Compactor trucks Tailgate: Tailgate connected to body with top hinges. Rubber seal between tailgate and body to prevent dirty water leakage. Dirty water tank under the tailgate with discharge tap under the hopper. Structure consists of: one sledge, one shovel, hopper and hydraulic cylinder.
| |||
Prevous export for your reference:
Contact us to get more information:
http://www.ceectrucks.com/ Add: No 99,7th zone West end of Jiefang Rd,Suizhou city, Hubei PR China.
Tel: 0086-136 4729 9000
Fax: 0086-722-3258330
Email: sale@ceectrucks.com
