5 CBM Fuel Tanker ISUZU

ISUZU 5,000 Liters Fuel Tanker Truck export Dubai

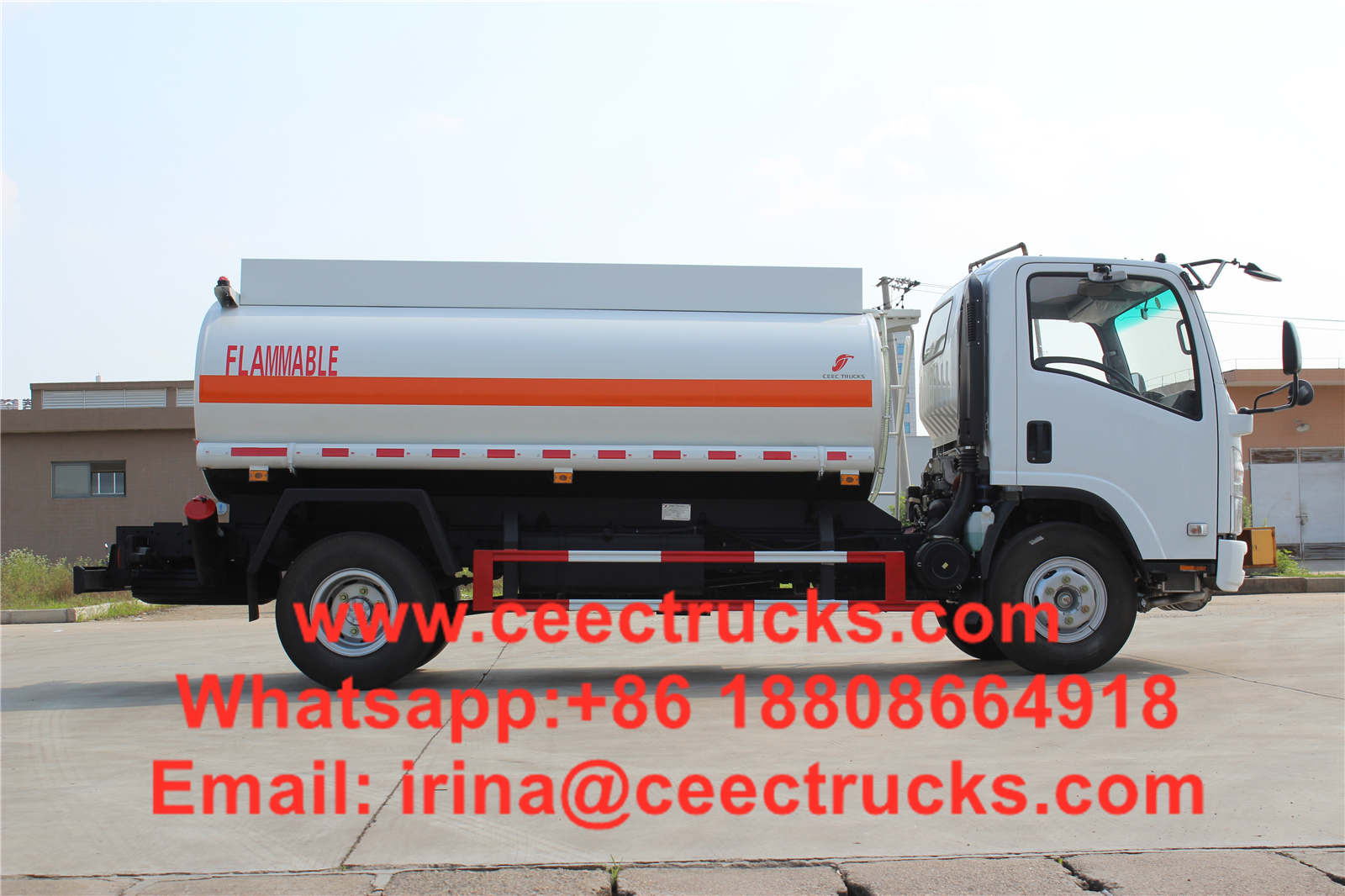

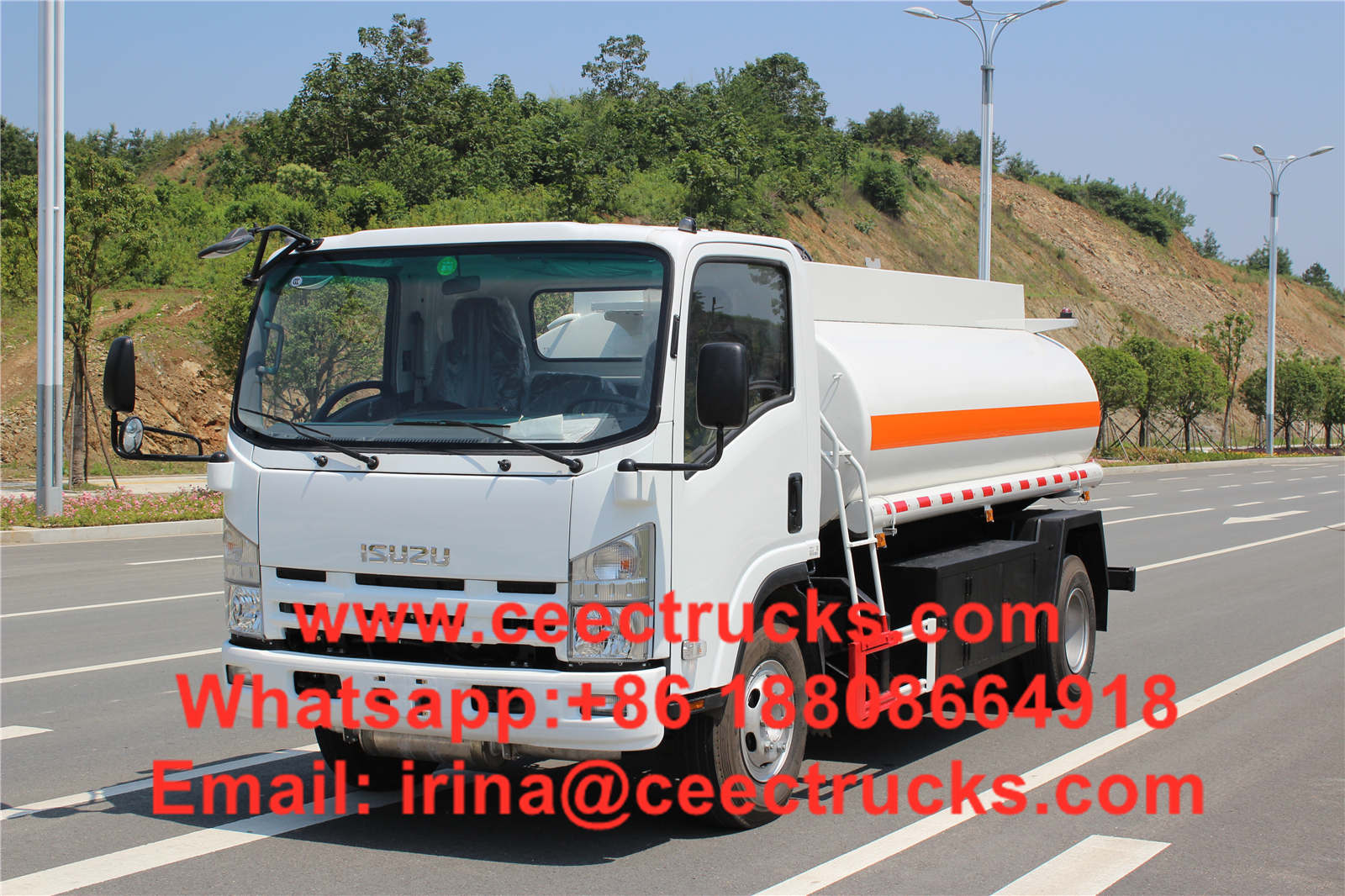

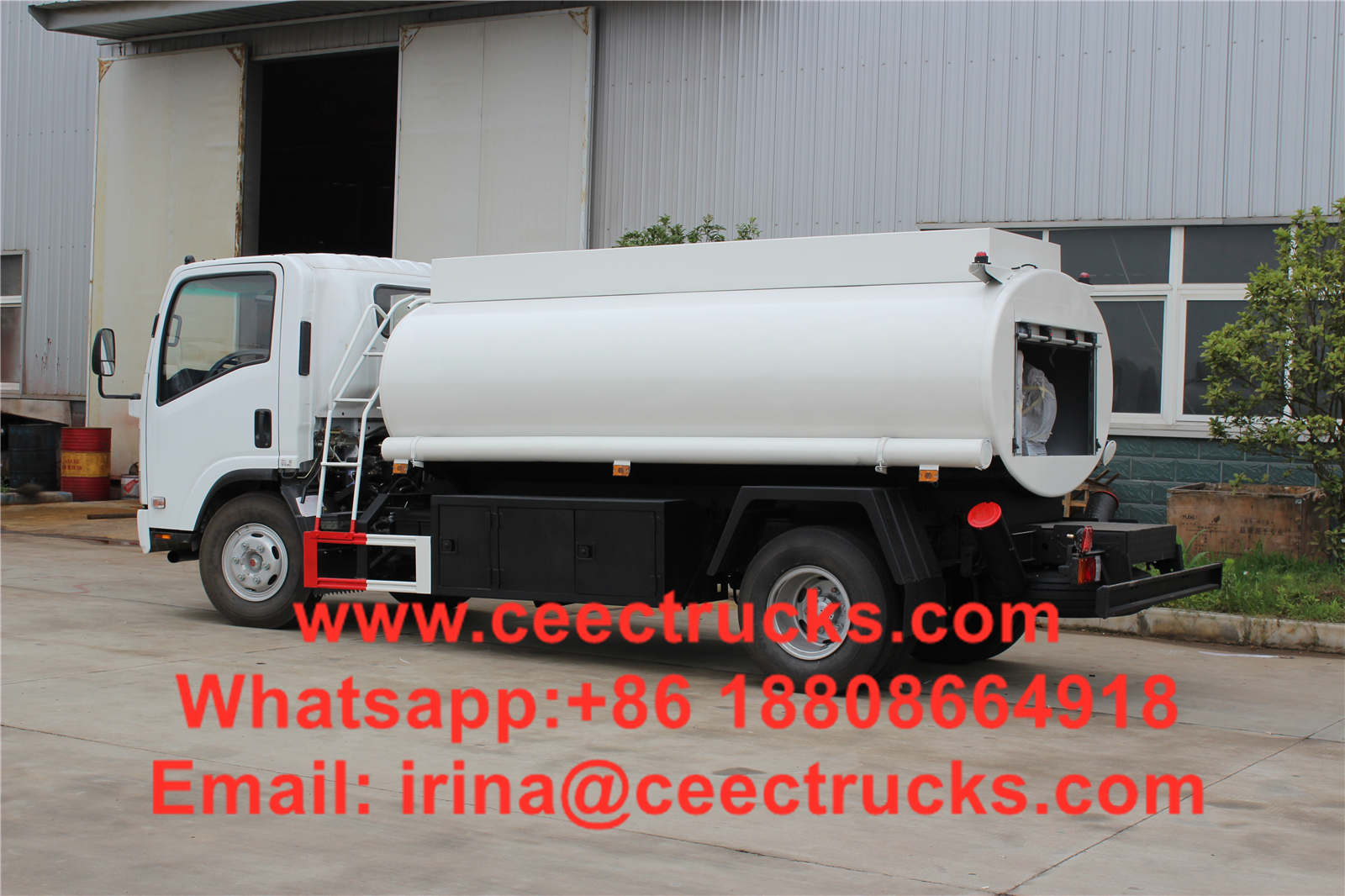

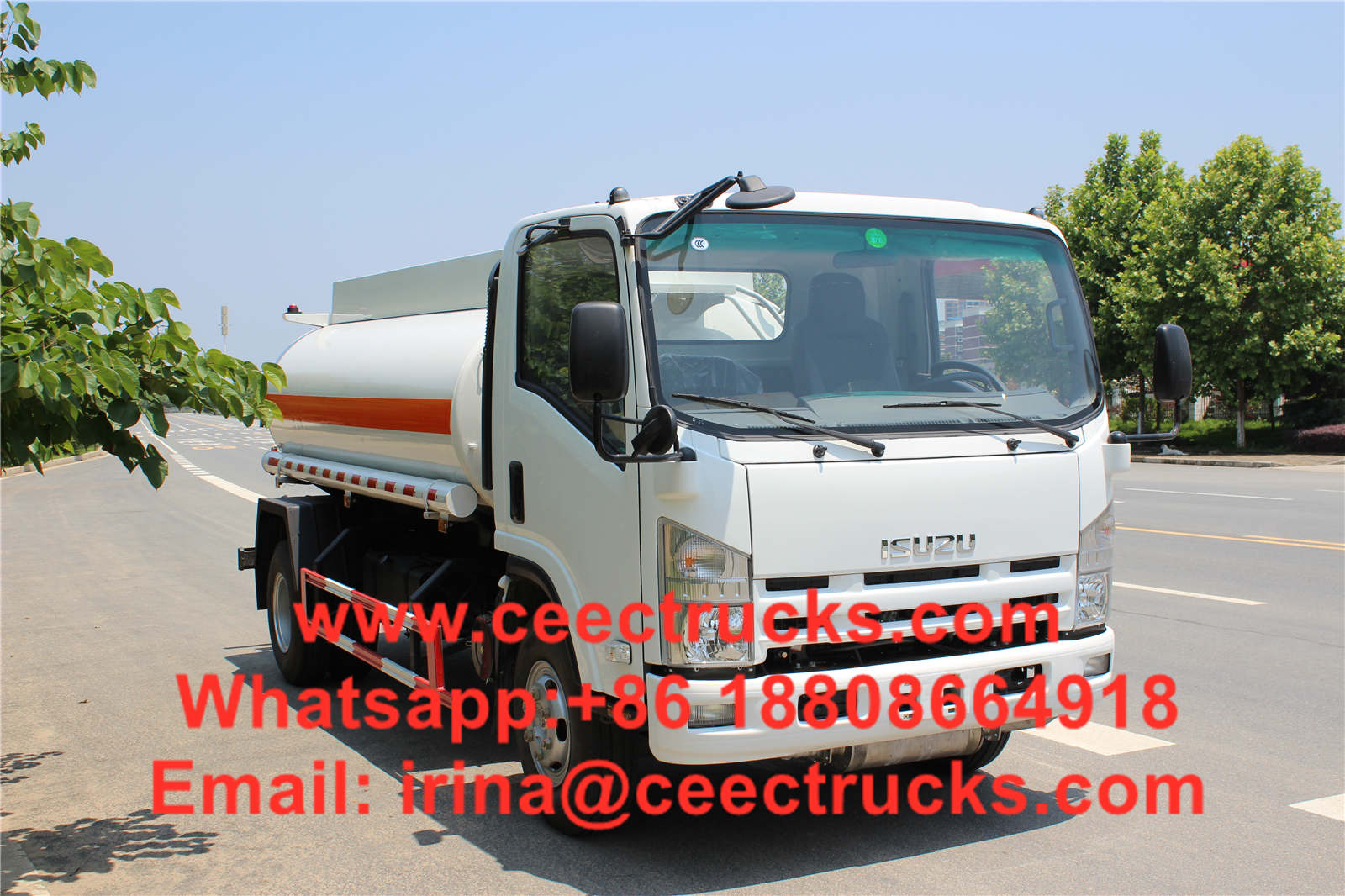

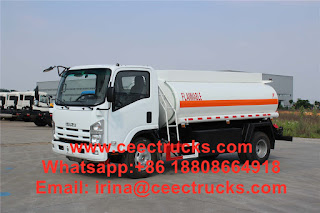

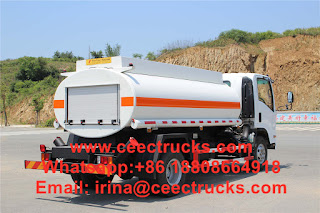

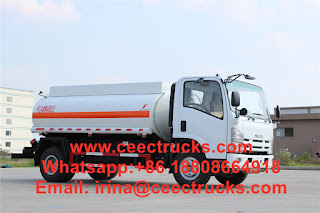

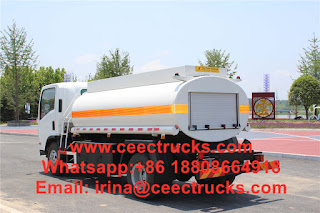

ISUZU 5000L Fuel tanker truck
ISUZU Fuel Tank Trucks (also called Isuzu 5 CBM oil refueling truck, 5000L diesel truck, Isuzu petrol fuel tank, oil refueler truck Isuzu trucks, oil tank for truck) is used to transport oil, diesel, gasoline, kerosene. Authorized ISUZU trucks exporter CEEC TRUCKS has over 10 years ISUZU fuel tanker truck manufacturer and export experience. And our ISUZU petrol tanker trucks widely export Africa kenya, Djibouti, Guinea, Rwanda, Zimbabwe, and Asia, Myanmar, Phillippine, Malaysia, Laos, Dubai, Maldives, etc


ISUZU 5000L Fuel tanker truck drawing


Dubai ISUZU 5000 liters fuel tanker truck advantages:

★ ISUZU 4*2 Left Hand Drive chassis, Japanese technology, perfect performance.
★ ISUZU 190HP engine, strong performance, easy cover all road condition
★ Famous Chinese ZHENGXING brand fuel dispenser, suitable for all kinds of trucks refueling job, larger flow rate and nice quality
★ Standard carbon steel material Q235 material, oval shape with 3 compartment, rational structure.
★ Fuel pump 80YHCB-60 model, super powerful, highly efficient, with pump in pump out function.
★ Massive, durable, long service life.


How does ISUZU 5 CBM refueling oil tanker truck work?


Dubai ISUZU 5000 liters fuel tanker truck working introduction



Similar Key Words: Isuzu oil refueling truck, diesel truck, Isuzu petrol fuel tank, NPR fuel dispensing tanker, oil refueler truck Isuzu trucks, light fuel tank truck, Isuzu fuel oil tanker, oil tank for truck




Driving Type
4x2    (Left hand drive)
Wheelbase
4175 mm
Engine
139 kw (190hp)
Tyre
8.25-20
Tank
Material:
Carbon steel(Q345)
Shell Body
5 mm nominal thickness
Head
6 mm nominal thickness
Baffles
3mm nominal thick, wave shape, four pieces with Ø 500mm service port
Tank shape
Ellipse
Capacity
Full capacity 7000L
Compartment
No
Shell Finish
Shot blasted with 1anti-rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.
Testing Pressure
36kPa, Water pressure test
Tank Fittings
Top inlet port
2pieces
Manhole Cover
Aluminum alloy, 20” self-latching manhole cover, with air-van.
Outlet port:

One pneumatic sea valve which at the front of tank, the size of outlet port is 3 inches, fix all connector.
Pipe box:
It made of PVC material, round shape which on the both sides of tank, one plastic pipe (5m)
Anti –Static System:

Static electricity plate , copper plate and earth cable reel
Tank Accessories
Ladder:
Stainless Steel ladder fixed at rear of tank

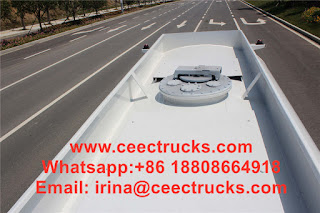

Walkway Platform:
It fixed on the top of tank with anti – skid surface treatment.
Handrail:
No
Fire Extinguisher Housing:
2 units, suitable for 4 kg’s fire extinguisher
Pump Device
Yes
Flow meter
Yes

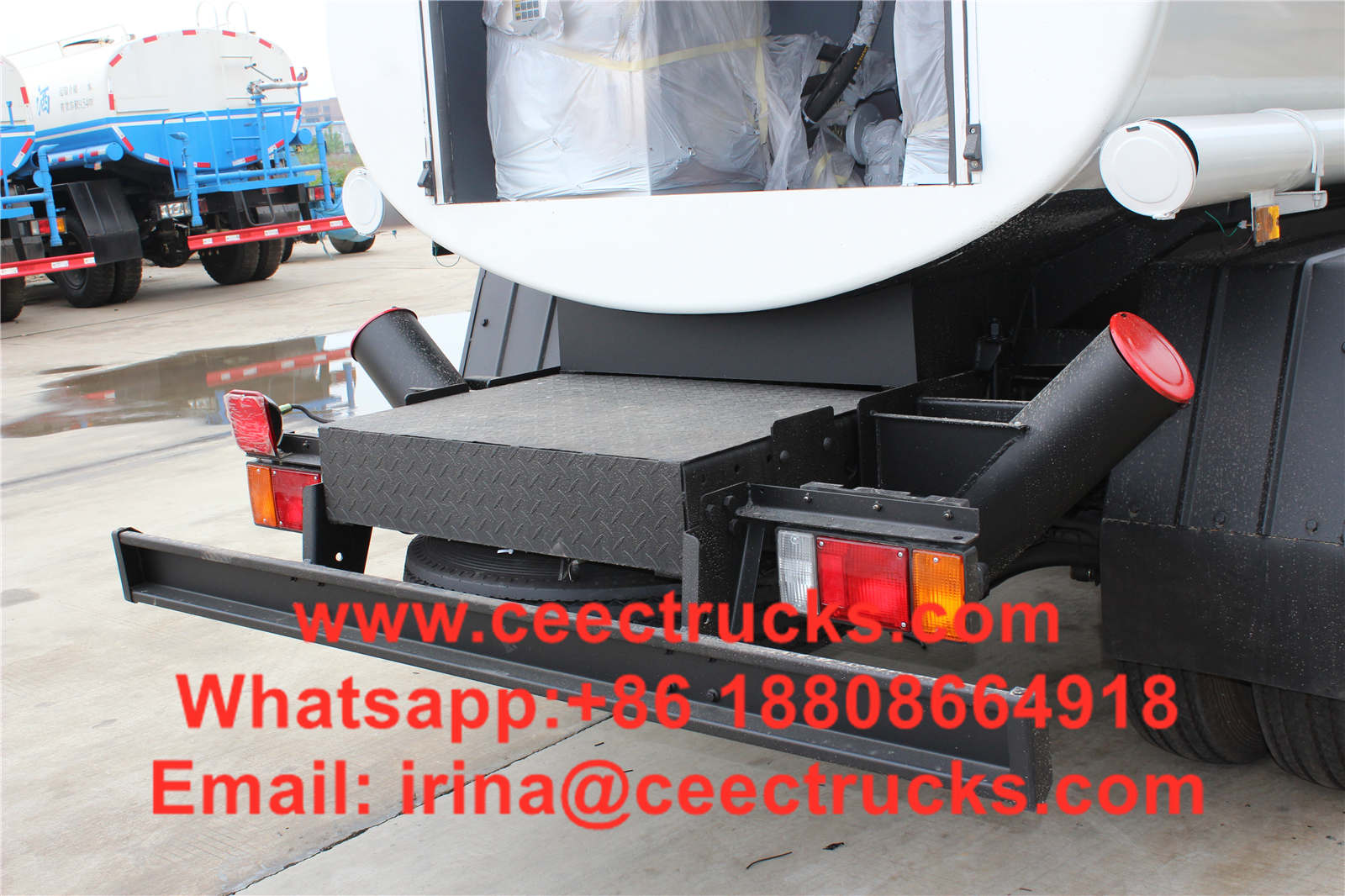

Tool box
Small box
Color
As optional
