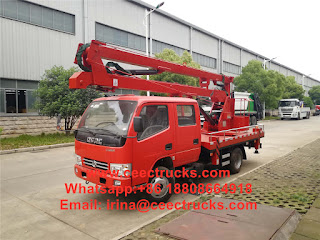

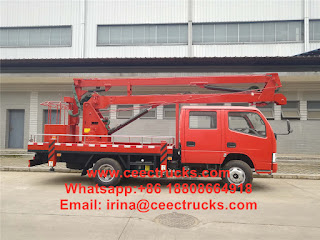

16m man lifting truck, Dongfeng brand model 4x2 chassis, 5-shift manual gearbox, 102HP diesel engine, painting and logos depend on requirement. Customer language control box.
Product Details
Applications:
Aerial Working Truck Dongfeng (also called Aerial Platform, Dongefng truck mounted aerial platform, arm lifting bucket truck Dongfeng, manlifter truck Dongfeng, Overhead Platform Operation truck Dongfeng) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.
Key Features:
---- Dongfeng chassis, perfect performance
---- CHAOCHAI engine, super powerful, no overhaul within 100,000 km.
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Specifications:
|
Aerial Working Platform Dongfeng (16M)
|
||
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
|
Overall
Dimension
|
7550 x 1980 x
3080 mm
|
|
|
GVW / Kerb
Weight
|
6,050 kg / 5,725 kg
|
|
|
Cab
|
Cab Capacity
|
2+3 persons
allowed
|
|
Air
Conditioner
|
With air
conditioner
|
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CHAOCHAI engine
|
|
|
Power
|
102Ps (75 KW)
|
|
|
Displacement
|
3707 ml
|
|
|
Emission
Standard
|
Euro 3 or 4
|
|
|
Chassis
|
Drive Type
|
4X2, left hand
drive
|
|
Transmission
|
Manual transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
|
|
|
Wheelbase/No.
of axle
|
3308 mm / 2
|
|
|
Tyre
Specification
|
7.00-16 or
7.00R16
|
|
|
Tyre Number
|
6 tyres and 1
spare tyre
|
|
|
Max Speed
|
95 km/h
|
|
|
Paint
|
Metallic paint
|
|
|
Superstructure
|
Cage Rated
Capacity
|
200 kg
|
|
Working Height
|
16 m
|
|
|
Beam
|
The beam is
articulated & telescopic extension type, hydraulic actuated and
controlled
|
|
|
Slewing
|
Slewing range
is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
|
|
|
Control
|
Control both
on the ground and remote control in cage
|
|
|
Safety Device
|
Relief valve,
balance valve, double-way hydraulic lock, hand operated emergency hydraulic
pump
|
|
|
Leveling
System
|
Hydraulic
stabilizer to level the vehicle on uneven ground
|
|
|
Optional
|
Insulated
cage; Wireless remote control system
| |
Customer Case
★ CHAOCHAI engine, super powerful
★ Can be operated at both turret and platform with all English version control plate ★ 12 months fast moving spare parts for FREE
★ Authorized Dongfeng aerial platform trucks exporter
★ Can be operated at both turret and platform with all English version control plate ★ 12 months fast moving spare parts for FREE
★ Authorized Dongfeng aerial platform trucks exporter
★ Training service for Dongfeng high platform trucks
Factory Advantage
CEEC TRUCKS is a leading exporter of Aerial Working trucks in China. We possess over 10-year export experience of high platform working trucks.
We
can ensure the fast delivery time and 12 months guarantee for our sewage
trucks. Our aerial platform trucks are sold to more than 80 countries
including
Eastern Europe and CIS countries, Africa, Southeast Asia, Central and
South America, Middle East, etc.
---- Maximize save your sea freight.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
