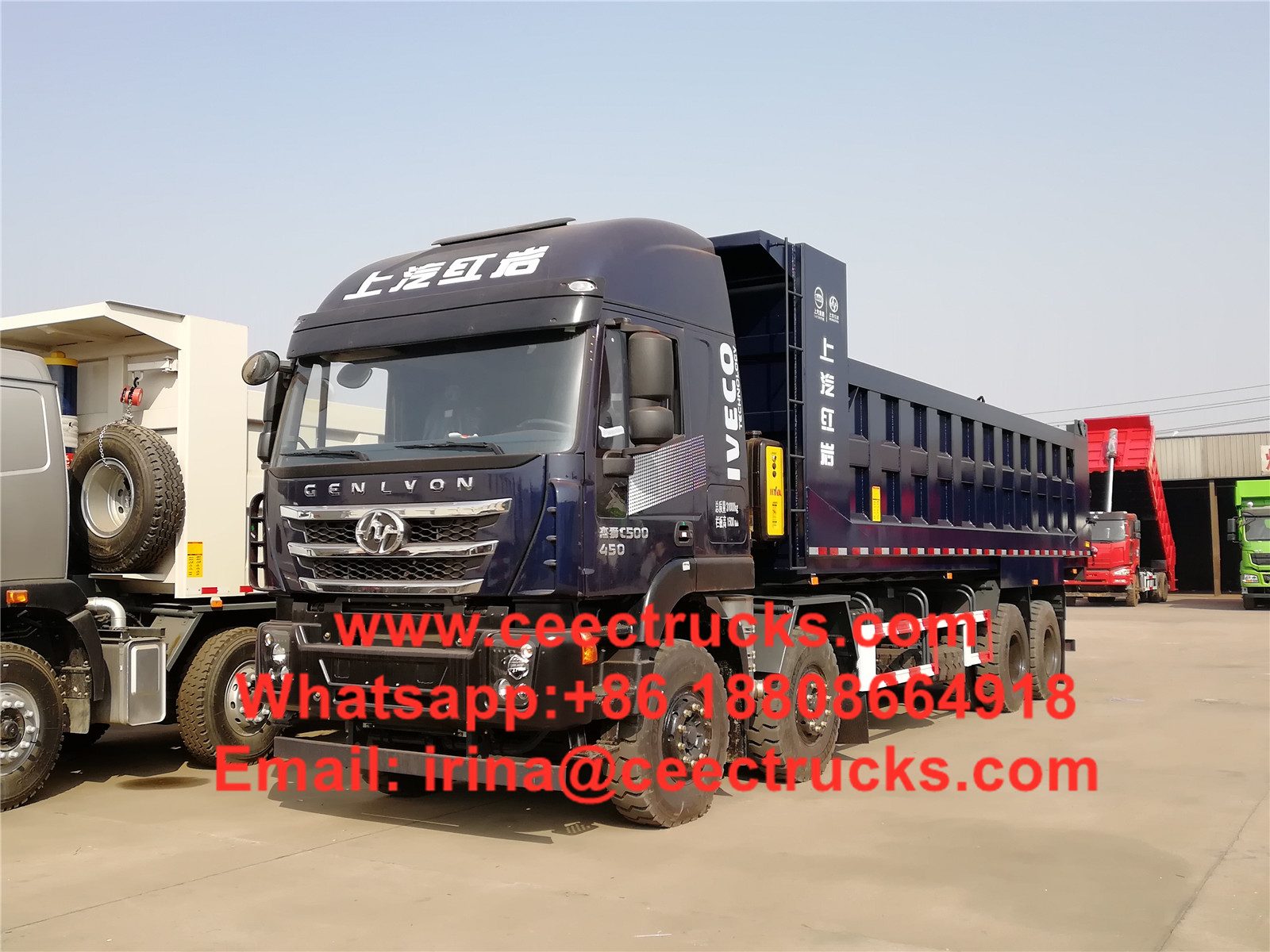

70Tons dump tipper truck, IVECO 8x4 LHD chassis, FAST 12-shift manual gearbox, famous Chinese brand Cursor 450HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.
Product Details
Applications:
IVECO Genylon 8x4 Dump truck (also called heavy duty dump truck, tipper truck, 70tons tipper trucks, Hyva front lifting dump truck, dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- IVECO Genylon heavy duty chassis, perfect performance
---- Cursor diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications: ---- Cursor diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
|
IVECO Genylon tipper truck (70 tons)
|
||
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Genylon
|
|
|
Overall Dimension
|
11345 * 2500 * 3860 mm
|
|
|
GVW / Kerb Weight
|
31,000kg / 15,500kg
|
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
Cursor diesel engine
|
|
|
Power
|
450 HP (332 KW)
|
|
|
Displacement
|
11120 ml
|
|
|
Emission Standard
|
Euro 4 or 5
|
|
|
Chassis
|
Drive Type
|
8X4 (LHD or RHD)
|
|
Transmission
|
FAST 12 speed levers with 2
reverse
|
|
|
Wheelbase/No. of axle
|
1800+4600+1400 mm / 4
|
|
|
Tire Specification
|
12.00R20
|
|
|
Tire Number
|
12 tires and 1 spare tire
|
|
|
Max Speed
|
95 km/h
|
|
|
Paint
|
Metallic paint
|
|
|
Superstructure
|
Pay loading capacity
|
70 Tons
|
|
Cargo body
|
8300*2300*1500
|
|
|
Thickness of cargo body
|
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
|
|
|
Cylinder type
|
T Type or Domestic 220 or HYVA 200
|
|
|
Lifting system
|
Middle or Front
|
|
|
Control
|
in the cabin
|
|
|
Color & LOGO
|
According to wish
|
|
|
All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
|
||
|
Optional
|
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
|
Customer Case
★ IVECO Genylon heavy duty chassis, perfect performance
★ FAST 12-shift manual mechanical transmission gearbox
★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm
★ 12 months fast moving spare parts for FREE
★ Authorized IVECO tipper trucks exporter
★ FAST 12-shift manual mechanical transmission gearbox
★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm
★ 12 months fast moving spare parts for FREE
★ Authorized IVECO tipper trucks exporter
★ Training service for IVECO dumper trucks
Factory Advantage
China best dump truck supplier and exporter, we supply the
best quality IVECO 4*2, 6*4, 6*6, 8*4, 8*8, etc.
We
can ensure the fast delivery time and 12 months guarantee for our tipper
trucks. Our IVECO heavy trucks are sold to more than 80 countries
including
Eastern Europe and CIS countries, Africa, Southeast Asia, Central and
South America, Middle East, etc.
---- Maximize save your sea freight.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
