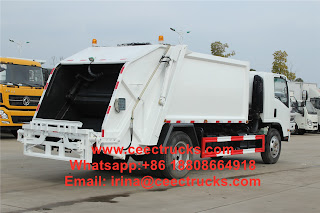

Cape Verde customer buy ISUZU 8cbm Rear loading hydraulic garbage compactor, ISUZU 190HP diesel engine，MLD 6-shift manual gearbox, PLC control box, painting and log s depend on requirement.
Product Details
Waste compactor vehicle Isuzu (also called Rubbish compactor trucks, Hydraulic pressed garbage truck, Trash compactor truck, Rear loader trucks) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.
CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.
Key Features:
---- ISUZU chassis, perfect performance

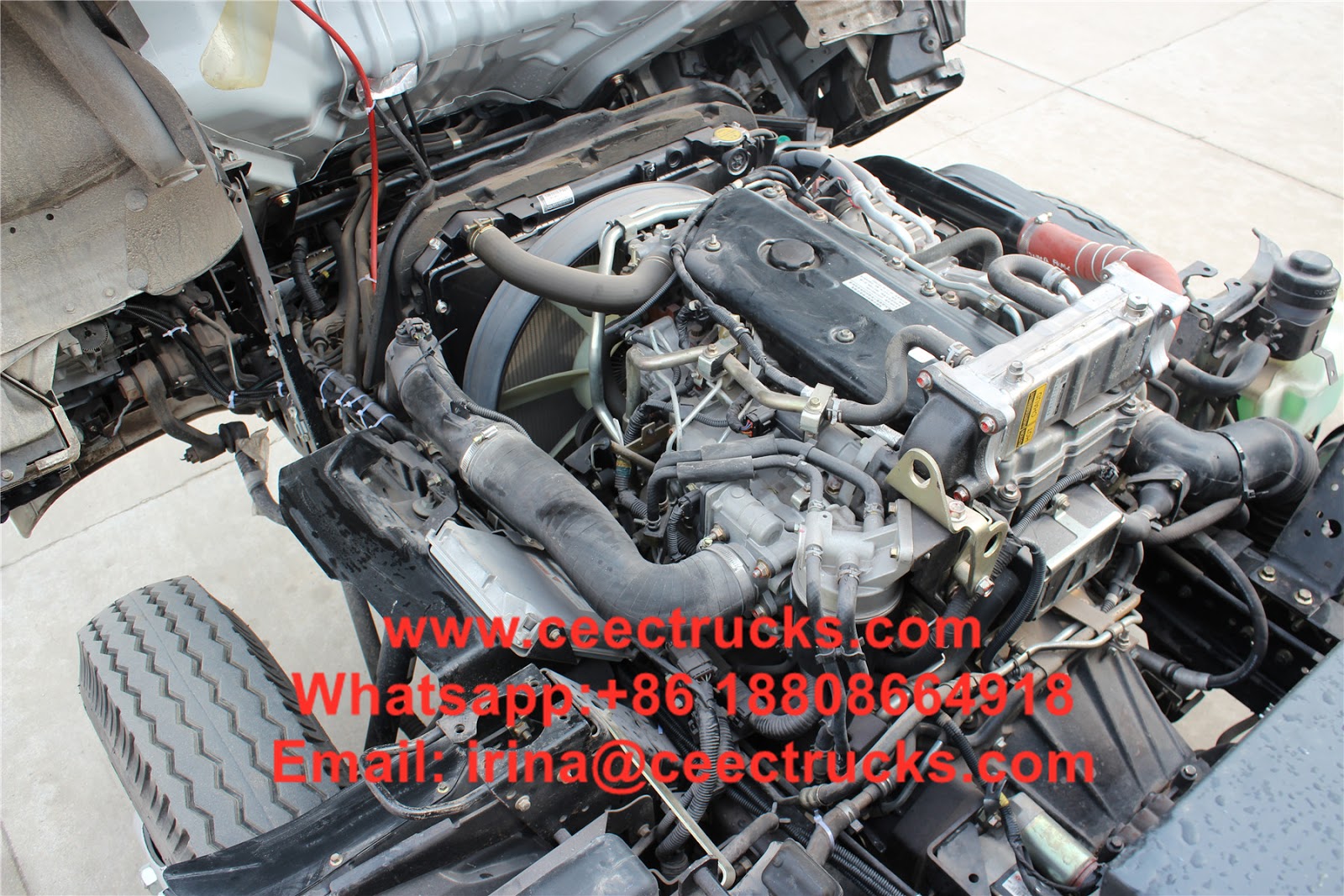

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|
Waste compactor vehicle Isuzu (8 cbm)
|
||
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
|
Overall Dimension
|
7500 * 2300 * 2880 mm
|
|
|
GVW / Kerb Weight
|
10,000kg / 5,120kg
|
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
|
Power
|
190 HP (139 KW)
|
|
|
Displacement
|
5193 ml
|
|
|
Emission Standard
|
Euro IV or V
|
|
|
Chassis
|
Drive Type
|
4X2 (left hand drive)
|
|
Transmission
|
ISUZU MLD 6 speed levers with 1 reverse
|
|
|
Wheelbase/No. of axle
|
3815 mm / 2
|
|
|
Tire Specification
|
8.25-16
|
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
|
Max Speed
|
95 km/h
|
|
|
Paint
|
Metallic paint
|
|
|
Superstructure
|
Body capacity
|
8 cbm
|
|

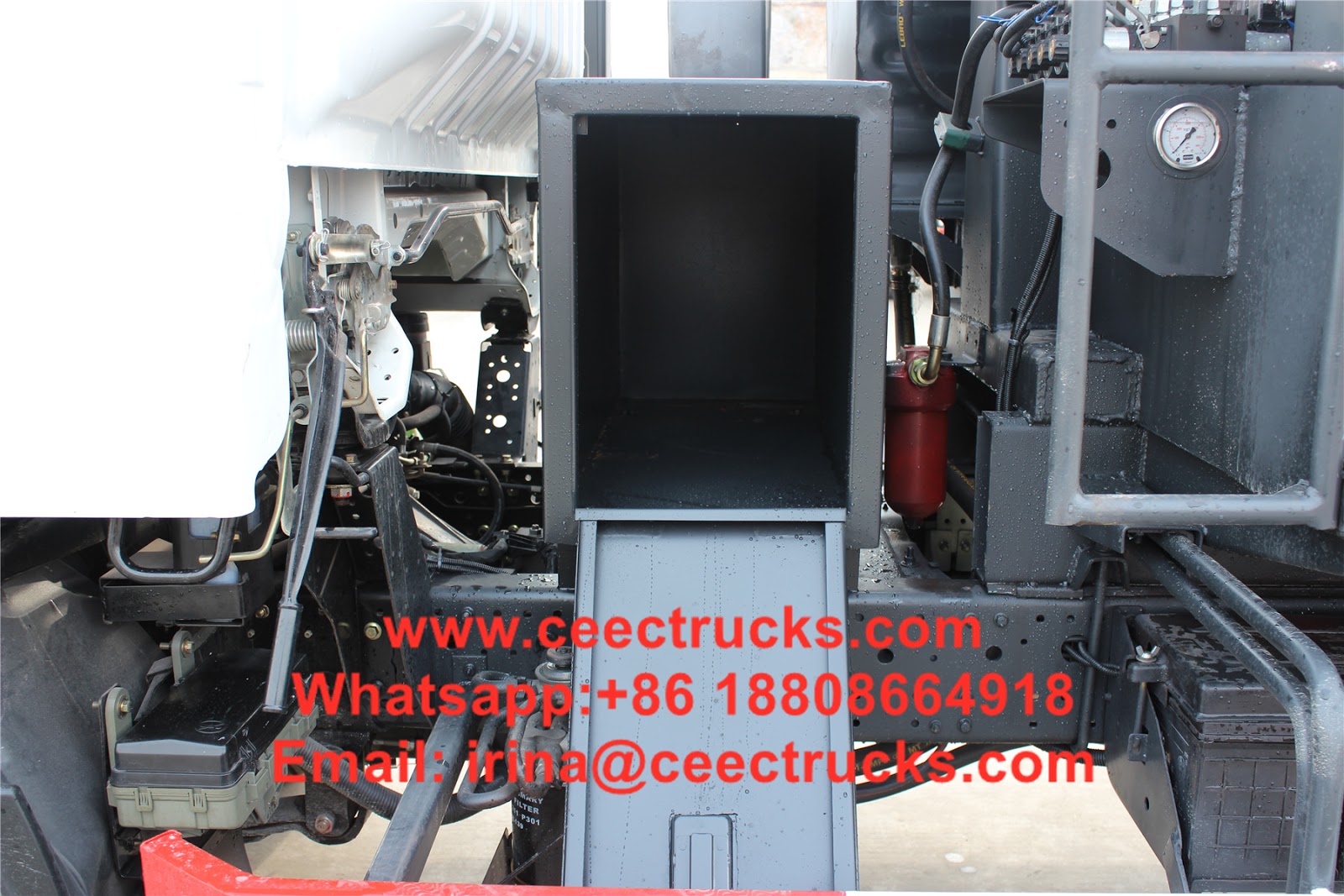

Fill Hopper capacity
|
1.2 cbm
|
|
|
Sewage tank
|
200 liters
|
|
|
Filling work cycly time
|
20~25 s
|
|
|
Discharge model
|
Horizontal Ejection
|
|
|
Control system
|
Electrically Hydraulic control
Manual hydraulic control
|
|
|

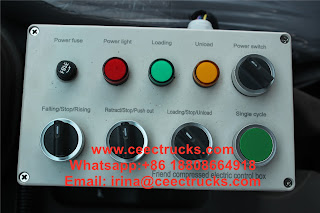

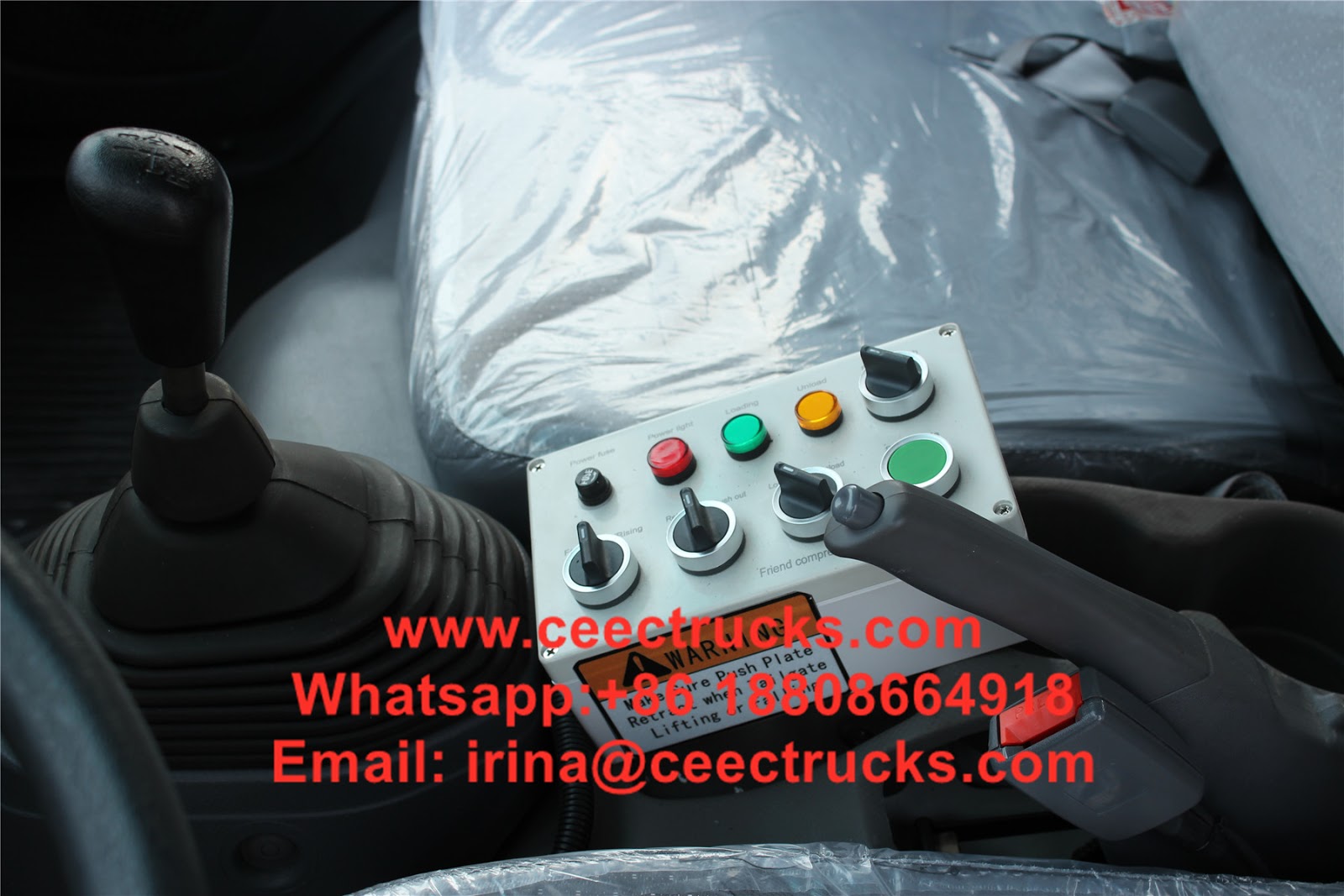

Control panel
|
English or Your language
|
|
|

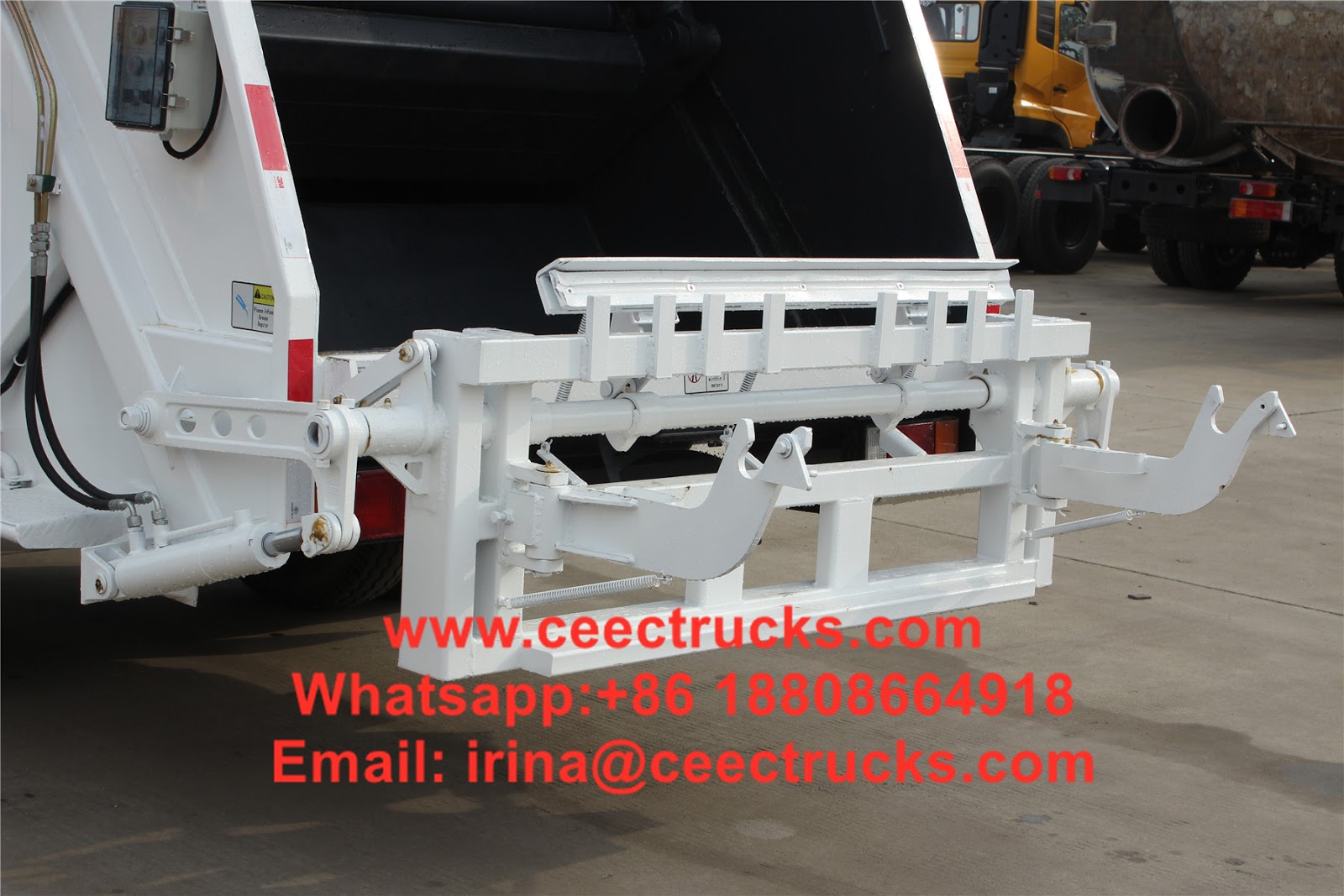

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,
handrail, fire extinguisher, basic tool kit, English manual……
|
||
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
| |
Customer Case
★ ISUZU 4*2 Left Hand Drive chassis, Japanese technology, perfect performance.
★ ISUZU 190HP engine, strong performance, easy cover all road condition
★ Standard carbon steel material Q235 material, oval shape with 3 compartment, rational structure.
★ Easy operation and easy maintenance.
★ Massive, durable, long service life.
Factory Advantage
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
