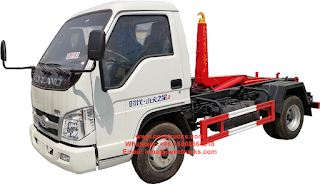

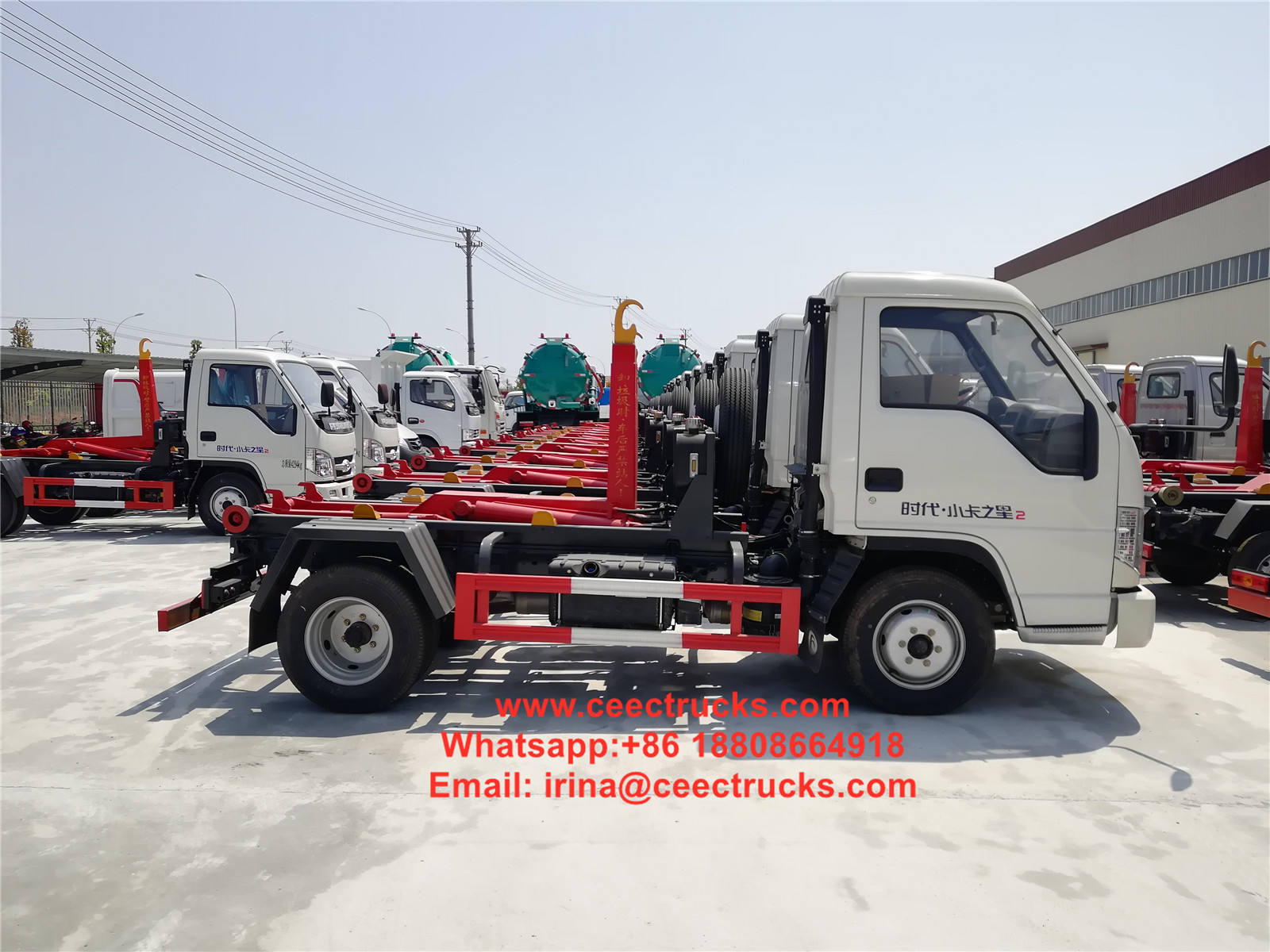

Mini 3cbm hook loader garbage truck, FOTON 4x2 chassis with 68HP diesel engine, Manual 5-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. All painting and logos depend on requirement.
Product Details
Applications:
Small Hook Loader FOTON (also called hook lift garbage truck FOTON, FOTON skip loader garbage truck, mini hook lifting
truck, hook lift refuse truck, FOTON hook loader, container detachable garbage
truck, hook arm garbage truck, hook lifting waste truck ) is designed
to collect and transport municipal solid waste, widely used in
residence community, hospital, municipal environmental section, garbage
collection and transportation station, etc.
CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons,
3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.
The hook loader with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- FOTON chassis, perfect performance
---- XICHAI / QUANCHAI diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.
---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.
---- Rational design of hook and locking structure, and truck more reliable.
---- Optional Electrical Control in cabin, easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
FOTON Mini Hook loader garbage truck (3 cbm)
|
||
General
|
Vehicle Brand
|
CEEC TRUCKS
|
Chassis Brand
|
FOTON
|
|
Overall Dimension
|
3620 * 1500 * 1990 mm
|
|
GVW / Kerb Weight
|
3,600kg / 1,800kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
QUANCHAI
|
|
Power
|
68 HP (50 KW)
|
|
Displacement
|
1800 ml
|
|
Emission Standard
|
Euro 2 or 3
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
2300 mm / 2
|
|
Tire Specification
|
6.50-14
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
3CBM capacity detachable container
|
Container material
|
Anti-corrosive steel
|
|
Hydraulic system
|
Chinese top brand cylinders and matched valves
|
|
Control Box
|
1. Electric Control Box in Cabin
2. Hydraulic control valve at rear
|
|
Self-discharge angle
|
≥45 °
|
|
Discharging time
|
≤45 s |
|
Lifting time
|
≤45 s
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
||
Optional
|
** Back alarm and Camera can be equipped.
** Remote Control Box can be optional.
** Garbage container can be of stainless steel
|
Customer Case
★ FOTON chassis, perfect performance
★ Euro 2 or 3 type, QUANCHAI engine, super powerful
★ Rational design of hook and locking structure, and truck more reliable. ★ 12 months fast moving spare parts for FREE
★ Authorized FOTON hook loader trucks exporter
★ Euro 2 or 3 type, QUANCHAI engine, super powerful
★ Rational design of hook and locking structure, and truck more reliable. ★ 12 months fast moving spare parts for FREE
★ Authorized FOTON hook loader trucks exporter
★ Training service for FOTON hook lift trucks
Factory Advantage
CEEC TRUCKS is a leading exporter of FOTON hook loader trucks in China. We possess over 10-year export experience of FOTON hook lift trucks.
We
can ensure the fast delivery time and 12 months guarantee for our sewage
trucks. Our FOTON detachable garbage container truck are sold to more than 80 countries
including
Eastern Europe and CIS countries, Africa, Southeast Asia, Central and
South America, Middle East, etc.
---- Maximize save your sea freight.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
