Applications:
ISUZU FTR Septic Tanker Truck (also called vacuum
suction truck, ISUZU 4×2 sewer cleaner truck, ISUZU FTR vacuum tanker
truck, ISUZU seweage suction truck, ISUZU vacuum truck, vacuum tanker
truck manufacturer) is used to collect, transport and discharge liquid such as dirty water,
sludge, septic, crude oil, and solid stuff such as small stones, bricks
as well. It is suitable for cleaning the sewer, cesspit, cesspool,
gully, etc. It is widely used in environment and sanitation field.
CEEC TRUCKS Vacuum truck which use WEILONG or Italy BP vacuum pump, for 10CBM
or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

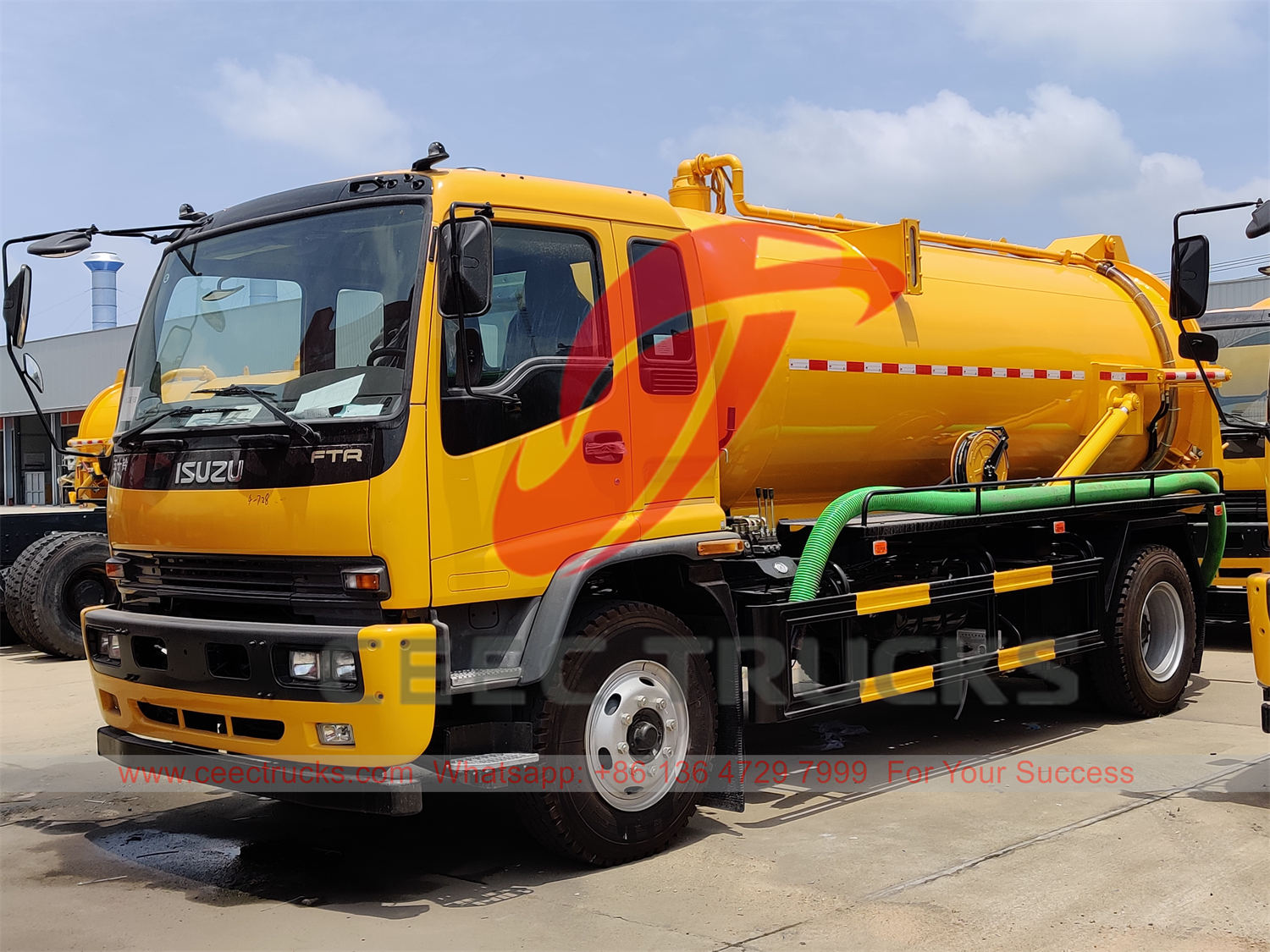

ISUZU FTR Sewage Sucker Truck (10 cbm) |
||
|
General |
Vehicle Brand |
CEEC |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
8900 * 2470 * 3550 mm |
|
|
GVW / Kerb Weight |
16,000kg / 8,500kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
205 HP (150 KW) |
|
|
Displacement |
5900 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
4X2 (left hand drive) |
|
Transmission |
MLD 6-shift speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4500 mm / 3 |
|
|
Tire Specification |
10.00R20 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
90 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Body capacity |
10,000 Litres |
|
Tanker Material |
Carbon Steel |
|
|
Suction Head pipeline |
7 m |
|
|

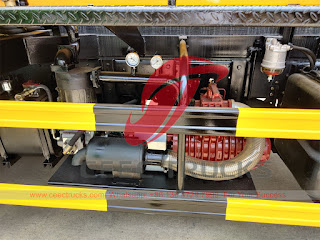

Vacuum Pump brand |
WEILONG / Italy BP / Domestic Pump |
|
|
Vacuum Pump advantage |
High efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m |
|
|
Hose |
High quality, wire strengthened hose |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional |
|
Vacuum Trucks |
|||
|
|
|
|
|
|
|
|
Model |
Engine Model |
Rated Power |
Payload |
Driving Model |
4KH1CN5LS |
98 HP |
6,000 L |
4×2 |
|
4HK1-TC51 |
190 HP |
8,000 L |
4×2 |
|
4HK1-TC50 |
205 HP |
10,000 L |
4×2 |
|
WD615.30 |
300 HP |
10,000 L |
6×4 |
|
WD615.34 |
340 HP |
20,000 L |
6×4 |
|
CEEC5200-ZZ |
WD615.38 |
380 HP |
20,000 L |
6×4 |
(Factory price ISUZU vacuum sucker trucks for sale )
CEEC TRUCKS is a professional vacuum trucks manufacturer. We can provide ISUZU vacuum suction truck, HOWO sewage tanker truck, FOTON septic suction truck, Dongfeng sewer sucker truck, etc. The capacity of vacuum tankers can be 3,000-20,000 liters. Our vacuum sucker trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.
★ Euro 5 type, ISUZU engine, super powerful
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU septic suction trucks exporter
★ Training service for ISUZU sewage tanker trucks
CEEC TRUCKS is a leading exporter of ISUZU sewage sucker trucks in China. We possess over 10-year export experience of vacuum suction trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage tanker trucks. Our vacuum tanker trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Professional guidance on your importing documents.
---- Maximize save your sea freight.
---- Safety, Quickly, Timely
