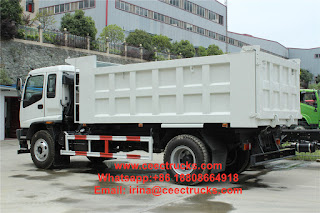

ISUZU FVR Dump truck

products


ISUZU FVR dump truck, ISUZU 4x2 LHD chassis, MLD 6-shift manual gearbox, ISUZU 240HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.


Product Details


 Applications:
ISUZU FVR Dumping truck (also called ISUZU heavy duty tipper truck, ISUZU 4X2 dumper truck, ISUZU new dump truck, hydrualic dump truck ISUZU, 6 wheels construction tipping truck, ISUZU dump vehicles) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.


CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.

 Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.

 Specifications:


General
Vehicle Brand
CEEC TRUCKS
Chassis Brand
ISUZU
Overall Dimension
6950 * 2500 * 3170 mm
GVW / Kerb Weight
16,000kg / 9,250kg
Cab
Cab Capacity
3 persons allowed
Air Conditioner
Heating/cooling air conditioner
Engine
Fuel Type
Diesel
Engine Brand
ISUZU diesel engine
Power
240 HP (177 KW)
Displacement
7790 ml
Emission Standard
Euro 4
Chassis
Drive Type
4X2 (LHD)
Transmission
MLD 6 speed levers with 1 reverse
Wheelbase/No. of axle
4500 mm / 2
Tire Specification
11.00R20
Tire Number
6 tires and 1 spare tire
Max Speed
95 km/h
Paint
Metallic paint
Superstructure
Pay loading capacity
20 Tons
Cargo body
4500*2200*1500
Thickness of cargo body
Option 1: Bottom 8mm, Side 6mm
Option 2: Bottom 10mm, Side 8mm
Cylinder type
T Type or Domestic 220 or HYVA 200
Lifting system
Middle or Front
Control
in the cabin
Color & LOGO
According to wish
All standard accessories: All steel body with drop sides. Auto release removable tailgate.
Ladder, warning lights, PTO
 fire extinguisher, basic tool kit, English manual……
Optional
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.


Customer Case

Euro 4 type, ISUZU engine, fuel consumption save 20%
MLD 6-shift manual mechanical transmission gearbox
Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized ISUZU tipper trucks exporter
Training service for ISUZU dumper trucks



Factory Advantage

China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our dumping trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely


CEEC garbage compactor truck factory review


---- Service more than 60 countries.
----  Professional guidance on your importing documents.
----  CO, FORM E, FORM P, Pre-shipping Inspection...

 export documents
