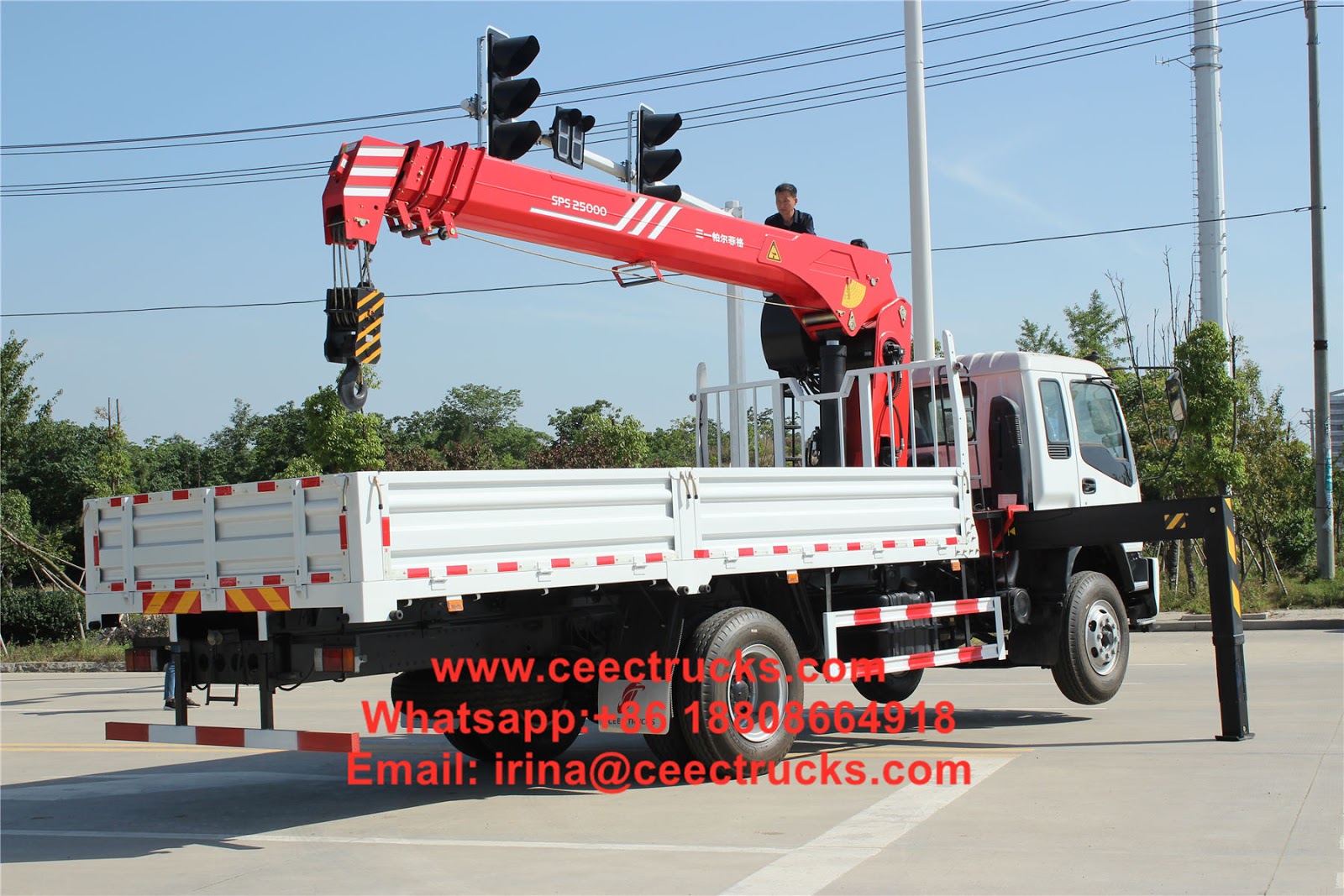

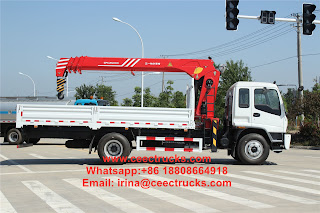

10tons Boom crane cargo truck, ISUZU FTR chassis, MSB 6-shift manual gearbox, ISUZU 240HP diesel engine, cargo body dimension as optional, painting and logos depend on requirement.
Product Details
Applications:
ISUZU FTR Truck Mounted Crane (also called Palfinger crane, boom crane, ISUZU crane truck, truck mounted mobile crane, Telescoping Boom for sale, truck cargo with loader, boom crane on truck chassis, ISUZU FTR truck with crane, boom crane vehicle) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T
CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Key Features:
---- ISUZU chassis ensures perfect performance on driving
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.
Crane Features:
---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
---- Advanced development means make sure that the design is very reliable.
---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
---- Compact hinge point design take up smaller space
---- The work is more safety after fitted over-winds alarm equipment.
---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
---- Anti-slewing impulse equipment that make vehicle running safely
Specifications:
|
ISUZU FTR boom crane truck (10Ton boom crane Palfinger)
|
||
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
ISUZU
|
|
|
Overall Dimension
|
8990 * 2510 * 3550 mm
|
|
|
GVW / Kerb Weight
|
18,000kg / 10,550kg
|
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
ISUZU
|
|
|
Power
|
240 HP (177 KW)
|
|
|
Displacement
|
7790 ml
|
|
|
Emission Standard
|
Euro 3 or 4
|
|
|
Chassis
|
Drive Type
|
4X2
|
|
Transmission
|
MLD 6 speed levers with 1 reverse
|
|
|
Wheelbase/No. of axle
|
5800 mm / 2
|
|
|
Tire Specification
|
11.00R20
|
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
|
Max Speed
|
90 km/h
|
|
|
Paint
|
Metallic paint
|
|
|
Superstructure
|
Cargo Box Dimension
|
4950*2290*600 mm
|
|
Crane Type
|
Telescpoic boom crane
|
|
|

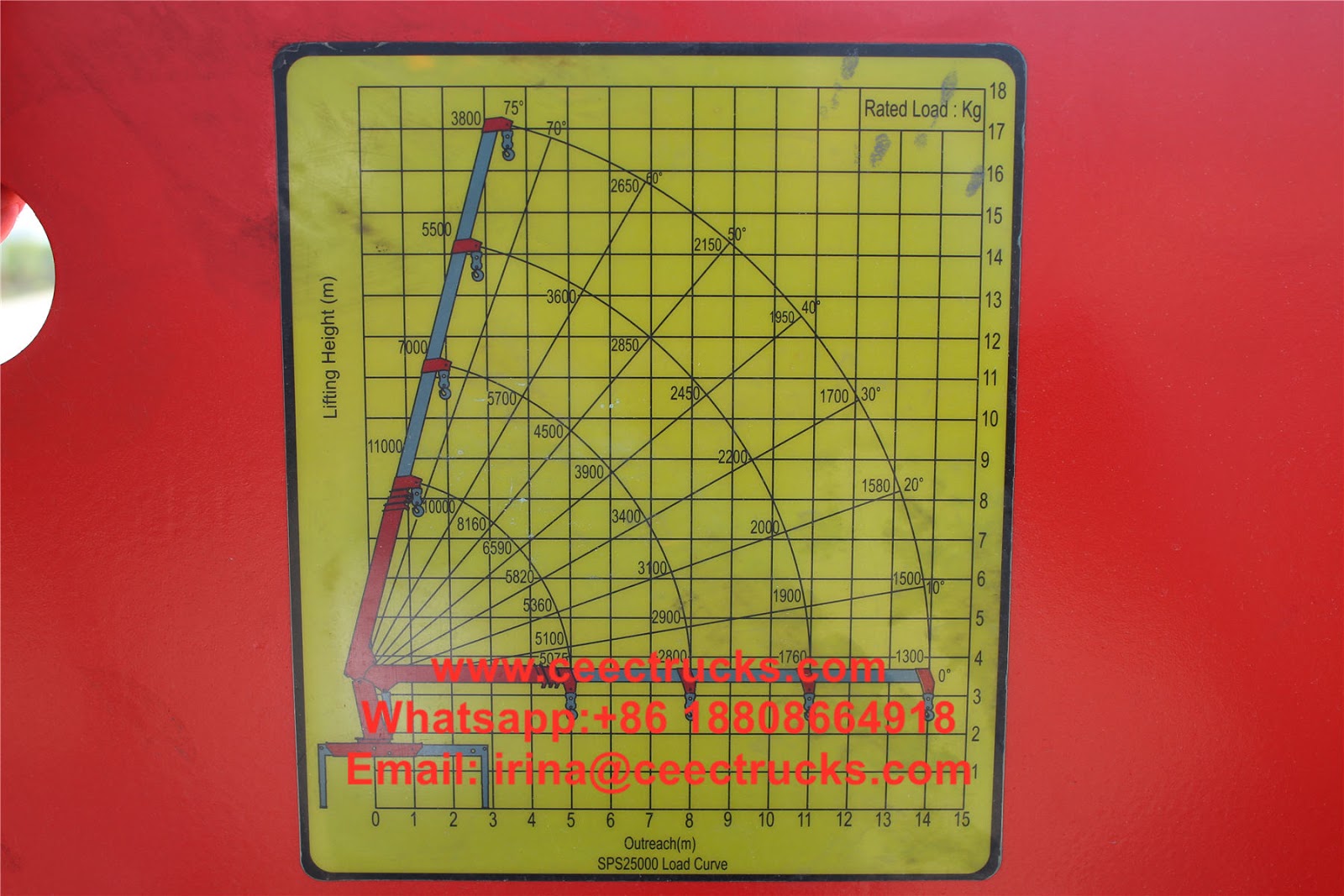

Max Lifting Capacity
|
10000 kg
|
|
|
Slewing Angle
|
360° All rotation
|
|
|
Crane Weight
|
2120 kg
|
|
|
Installation Space
|
900 mm
|
|
|

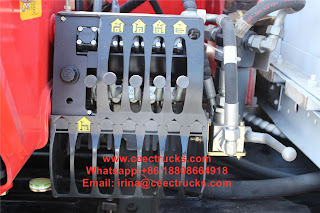

Control panel
|
English or Your language
|
|
|
All standard accessories: Basic tool kit, English manual……
|
||
|
Optional
|
** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to requirement.
** Box height could be nominated** Remote Control Box optional | |
Customer Case
★ Euro 3 or 4 type, ISUZU engine, fuel consumption save 20%
★ MLD 6-shift manual mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU crane trucks exporter
★ Training service for ISUZU truck mounted crane.
Factory Advantage
China best truck mounted crane supplier and exporter, we supply the
best quality ISUZU boom crane trucks.
We
can ensure the fast delivery time and 12 months guarantee for our crane
trucks. Our ISUZU boom crane trucks are sold to more than 80 countries
including
Eastern Europe and CIS countries, Africa, Southeast Asia, Central and
South America, Middle East, etc.
---- Maximize save your sea freight.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
