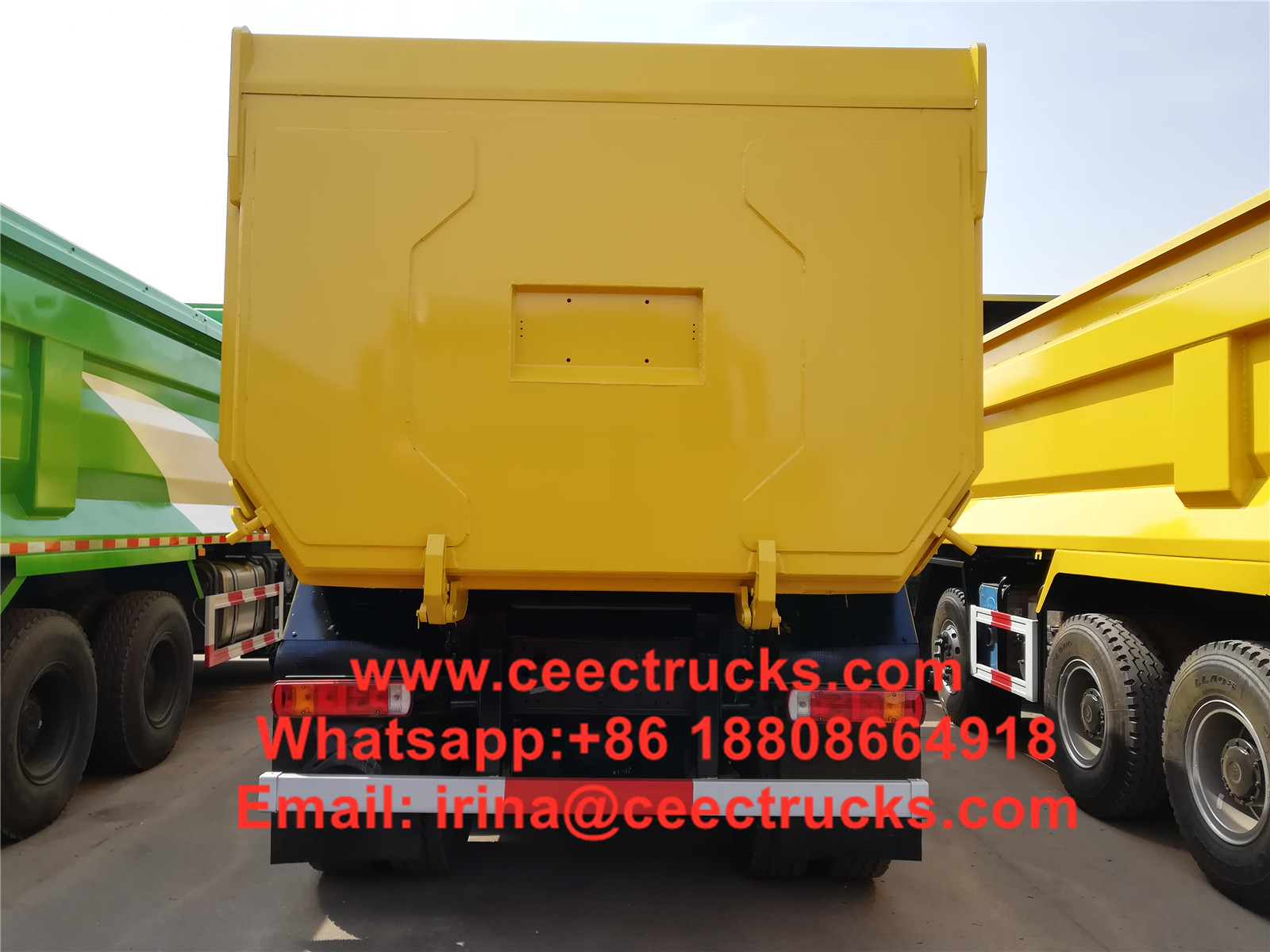

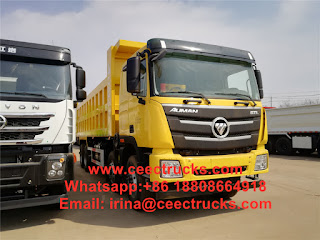

FOTON 8X4 Dump truck

products

FOTON  8x4 dump tipper truck, FOTON 8x4 LHD chassis, FAST 12-shift manual gearbox, famous Chinese brand WEICHAI 430HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.


Product Details

 Applications:
  FOTON 8x4 Dumper truck (also called heavy duty dump truck, tipper truck, 60tons tipper trucks, Hyva front lifting dump truck, dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.


CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.

 Key Features:

---- FOTON heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.


 Specifications:



FOTON 8*4 tipper truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	FOTON
	Overall Dimension	11100 * 2550 * 3750 mm
	GVW / Kerb Weight	31,000kg / 15,100kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	WEICHAI diesel engine
	Power	430 HP (316 KW)
	Displacement	11800 ml
	Emission Standard	Euro 5
Chassis	Drive Type	8X4 (LHD or RHD)
	Transmission	FAST 12 speed levers with 2 reverse
	Wheelbase/No. of axle	1800+4900+1350 mm / 4
	Tire Specification	12.00R20
	Tire Number	12 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Pay loading capacity	60 Tons
	Cargo body	8000*2350*1500
	Thickness of cargo body	Option 1: Bottom 8mm, Side 6mm Option 2: Bottom 10mm, Side 8mm
	Cylinder type	T Type or Domestic 220 or HYVA 200
	Lifting system	Middle or Front
	Control	in the cabin
	Color & LOGO	According to wish
	All standard accessories: All steel body with drop sides. Auto release removable tailgate. Ladder, warning lights, PTO  fire extinguisher, basic tool kit, English manual……
Optional	** Back alarm and Camera can be equipped. ** Other tipper body can be choose. ** Other material and plate thickness can be choose.

Customer Case

★ Euro 5 type, WEICHAI engine, fuel consumption save 20%
★ FAST 12-shift manual mechanical transmission gearbox
★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

★ 12 months fast moving spare parts for FREE

★ Authorized FOTON tipper trucks exporter

★ Training service for FOTON dumper trucks

Factory Advantage

China best dump truck supplier and exporter, we supply the best quality FOTON 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our FOTON heavy trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely



---- Service more than 60 countries.
----  Professional guidance on your importing documents.
----  CO, FORM E, FORM P, Pre-shipping Inspection...
