The 20units RHD water bowser use YUCHAI
135hp engine, famous 5-shift manual transmission gearbox, the maximum speed can
be up to 90km/h. All right steering wheel
water sprinkler truck use standard Q235 carbon steel, 4mm thickness (5mm
for optional), ellipse shape, with inner anticorrosion treatment, which
increased the service life. The tank capacity Besides, both in front and rear there are injection spray
pipes, in tother words, the 4x2 RHD spary water tanker truck can
have front and rear spray at same time.
Following
show us the technical specification and pictures of the RHD water tanker
vehicle:
A. Truck:
|
Name
|
Standard configuration
|
|
♦ Model:
|
UDT5112GSS
|
|
♦ Drive type:
|
4x2 Right Hand Drive
|
|
♦ Cab type:
|
Forward control over engine, all-steel-welded construction, power
tilting cab; spring suspensions with hydraulic shock absorbers. 2 seats 1-DIN AM/FM CD/MP3 Player
|
|
♦ Engine model:
|
YC4E135-21
|
|
♦ Engine power:
|
100 kw
|
|
♦ Emission standard:
|
Euro 3
|
|
♦ Displacement
|
4275 ml
|
|
♦ Transmission gear:
|
DATONG 5-shift Manual
|
|
♦ Front axle:
|
Semi-Elliptical Steel Leaf Spring and Double Acting Hydraulic Telescopic
Shock Absorber
|
|
♦ Rear axle:
|
Semi-Elliptical Steel Leaf Spring and Double Acting Hydraulic Telescopic
Shock Absorber
|
|
♦ Clutch
|
Single-plate dry coil-spring clutch, hydraulically operating with air
assistance
|
|
♦ Fuel tank
|
200 L
|
|
♦ Tyres:
|
9.00-20
|
|
♦ Dimension in mm
|
Wheel base 4200 mm
Overall length 7800 mm
Overall width 2490
mm
Overall height 3150 mm
|
|
♦ Weight in Kg
|
Gross vehicle weight
16000 kg
Front axle loading capacity
6000 kg
Rear axles loading capacity
10000 kg
|
|
♦ Brakes
|
Service brake: dual circuit
compressed air brake
Parking brake: Spring energy,
compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
|
|
♦ Electrics
|
Operating voltage: 24V, negative grounded
|
|
♦ Maximum Speed:
|
90 km/h
|
|
♦ Maximum gradeability:
|
32 %
|
B. Tanker SPEC:
|
Name
|
Standard configuration
|
|
♦ Tank volume
|
8000 L-12000L
|
|
♦ Tank Material
|
Carbon steel(Q235)
|
|
♦ Shell Body
|
4 mm nominal thickness
|
|
♦ Head
|
4 mm nominal thickness
|
|
♦ Tank shape
|
Ellipse
|
|
♦ Compartment
|
One compartment
(multi-compartment are available)
|
|
♦ Shell Finish
|
Shot blasted with 1 antirust, 1 base coat and 1 finishing coat, the
color of tank is according to customer requirement.
|
|
♦ Testing Pressure
|
36kPa, Water pressure test
|
CEEC TRUCKS water bowser's tanker capacity range from 3CBM to 20CBM, and can satisfy all our clients requirement.

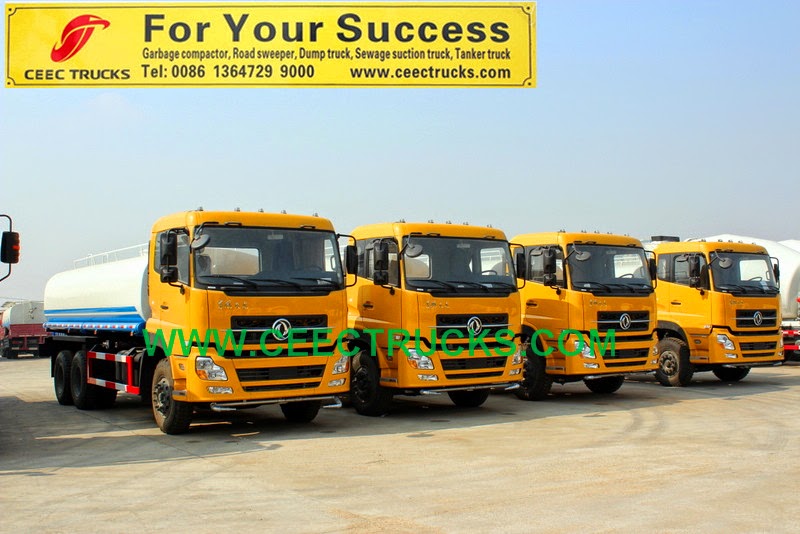

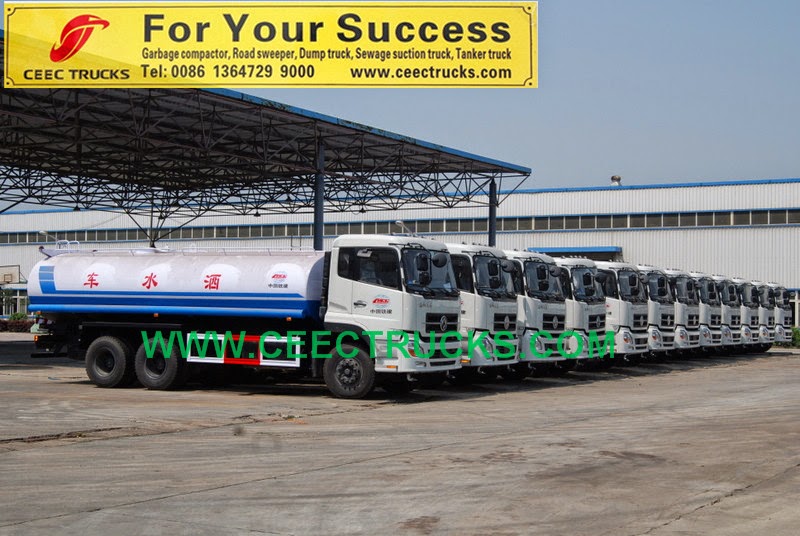

Previous clients build samples:
4-6CBM water bowser
6-10CBM water bowser
8-12CBM water bowser
10-14CBM water bowser
16-20CBM water bowser
