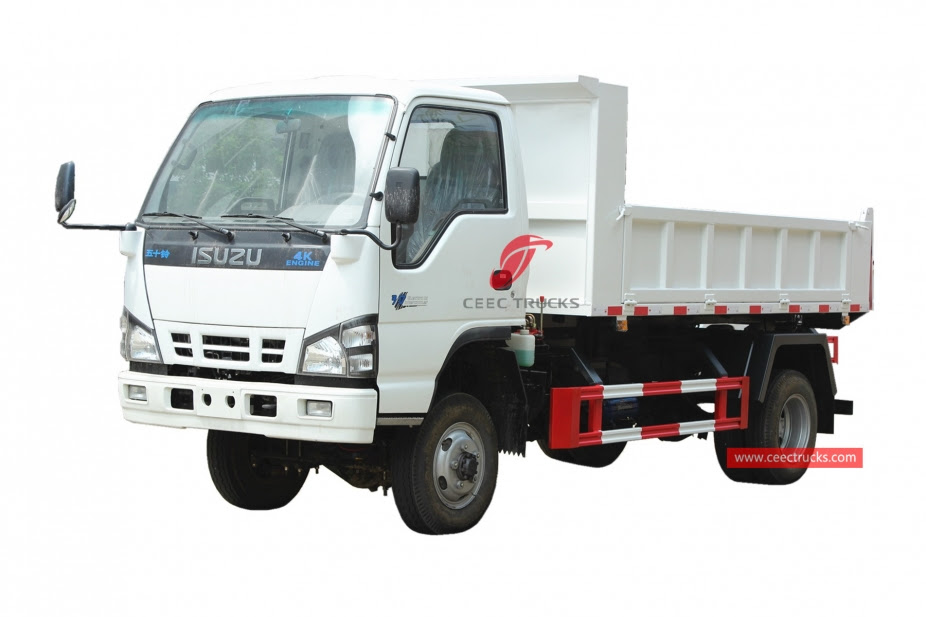

ISUZU Off-road Dump truck

products

ISUZU 4x4 dump truck, JISUZU 4x4 LHD chassis, MSB 5-shift manual gearbox, ISUZU 130HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.



Product Details

 Applications:
ISUZU 4X4 Dump truck (also called ISUZU 4X4 tipping truck, ISUZU 4X4 dumper truck, ISUZU all wheel drive dump truck, ISUZU mini off-road dump truck, 6 wheels Sand tipper truck, ISUZU HYVA Lifting Tipping Truck) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.


CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.

 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.


 Specifications:



ISUZU Off-road Dump truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	5035 * 1945 * 2350 mm
	GVW / Kerb Weight	4,125kg / 2,500kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	130 HP (96 KW)
	Displacement	2999 ml
	Emission Standard	Euro 4
Chassis	Drive Type	4X4 (LHD)
	Transmission	MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	2765 mm / 2
	Tire Specification	7.00R16
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Pay loading capacity	10 Tons
	Cargo body	3260*1780*380
	Thickness of cargo body	Option 1: Bottom 8mm, Side 6mm Option 2: Bottom 10mm, Side 8mm
	Cylinder type	T Type or Domestic 220 or HYVA 200
	Lifting system	Middle or Front
	Control	in the cabin
	Color & LOGO	According to wish
	All standard accessories: All steel body with drop sides. Auto release removable tailgate. Ladder, warning lights, PTO  fire extinguisher, basic tool kit, English manual……
Optional	** Back alarm and Camera can be equipped. ** Other tipper body can be choose. ** Other material and plate thickness can be choose.

Customer Case

★ Euro 4 type, ISUZU engine, fuel consumption save 20%
★ MSB 5-shift manual mechanical transmission gearbox
★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU tipper trucks exporter

★ Training service for ISUZU dumper trucks

Factory Advantage

China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our ISUZU dump trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely



---- Service more than 60 countries.
----  Professional guidance on your importing documents.
----  CO, FORM E, FORM P, Pre-shipping Inspection...
