Hydraulic operated 5T truck mounted crane exported to East Asia countries with outstanding performance and lower price

Hydraulic operated 5T truck mounted crane exported to East Asia countries with outstanding performance and lower price

CEEC TRUCKS produced Telescopic Truck Mounted Crane  have following Advanced Features:
1. CEEC TRUCKS is the manufacturer of truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc. 2. Single cylinder synchronization guy cable technology makes work efficiency much higher than before. 3. Advanced development means make sure that the design is very reliable. 4. The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity. 5. Compact Hinge point design take up smaller space. 6. The work is more safety after fitted with over windsalarm equipment. 7. The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system. 8. Float three-point bridge structure design canlower the accessional stress on the chassis when traveling. 9. Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation. 10. CEEC truck monted crane equipped with Anti-slewing impulse equipment that make vehicle running sagely.

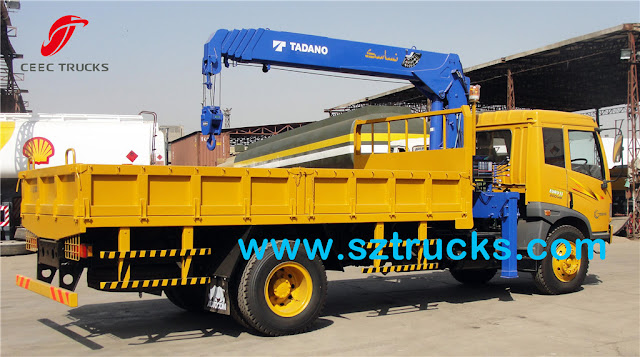

Above Pictures show previous export FAW brand 5T truck mounted crane, which use famous Chinese brand FAW chassis, equipped with telescopic truck mounted crane, and the related loading capacity is 5T (5000kg), with customer required BLUE painting, both side of truck installed hydraulic leg, also with operating joysticks.

CEEC TRUCKS produced ISUZU 5T XCMG brand telescopic boom crane cargo truck have following technical specifications:

Items			Parameter
Truck Model			CEEC5090JSQ1
Crane Parameter	Max Lifting Capacity		5000 kg
	Max Lifting Moment		12.5 T.M
	Recommend Power		18 kw
	Max Oil Flow of Hydraulic System		32 L/min
	Max Pressure of Hydraulic System		20 Mpa
	Oil Tank Weight		90 L
	Crane Weight		2120 kg
	Installation Space		900 mm
	Rotation Angle		360° All Rotation
Tank Body	Cargo Thickness	Side	3mm
		Floor	4mm
Chassis	Recommend Chassis Brand		ISUZU / DongFeng
	Drive Mode		4x2
	Tire type		8.25-16 tire
	Tire No.		6+1 units
	Max speed		105 km/h
	Cab		1.  Flat roof, All-steel-welded construction 2.  spring suspensions with hydraulic shock absorbers 3.  Air condition 4.  2 seats 1-DIN AM/FM CD/MP3 Player
Engine	Power		140 kw / 190hp
	Fuel type		diesel
	Emission Standard		Euro 4
Gearbox	Control type		Manual
	Gear		ISUZU MLD 6-shift, 6 forward & 1 reverse

Contact us to get more information about Cesspit Emptier:
