DFAC 6x6 AWD movable kitchen trucks with good quality and low price hot sale

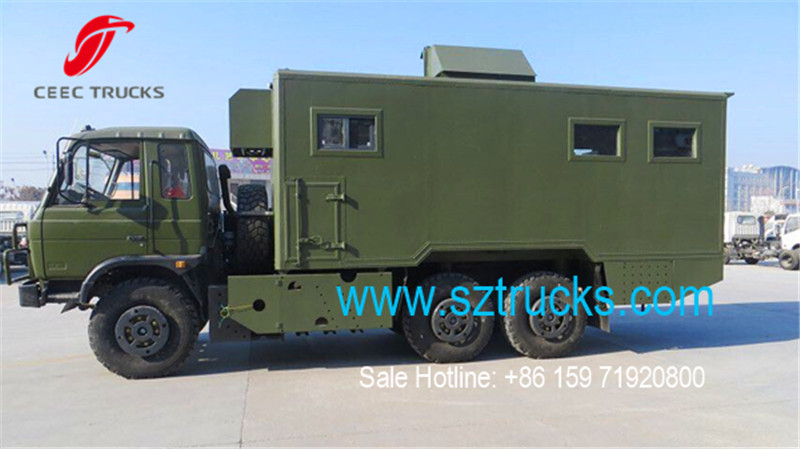

DONGFENG 6x6 all-wheel-drive movable kitchen trucks for military project
Brief introduction:
DFAC all wheel drive 6x6 movable kitchen trucks is totally 2015 newly designed, which is mainly based on needs of wild survival. Which can improve the logistics support ability, and very suitable for military usage.

This truck use DONGFENG type 2 all-wheel-drive model chassis, equipped with military special use 12.5R20 off-road tyre, World famous CUMMINS 190 horse power engine, manual operation 6-shift transmission gearbox, 3500+1250mm relatively short wheelbase made the trucks very easy to conquer tough road. As for special design part, which use heat insulation & preservation plate, with multiple electricity supply. All kitchen utensile are standard equippments and very suitable for wholeday working.

Usage & Working environment:
This DFAC all wheel drive 6x6 movable kitchen trucks mainly used for military outdoor activities, which can provide hot water and hot nutrition food. In general, for one truck can provide 300 person's dietary requirement.

Ambient temperature: -30℃~+42
Storage temperature: -41℃~+70
Anti wind level: Level 8 (wind speed ≤20.10m/s)
Rainfall intensity: ≤6.0mm/min
Plain type altitude: ≯2500mm
Plateau type altitude>2500mm




Technical specification:

Chassis mouldDFS5160GLJCompartment length
Total weight (kg)16050 Approach / departure angle (° )35/30
Rated the quality (kg)7900 Front overhang / rear overhang (mm):1385/1625
Curb weight(kg)7955Max speed(km/h):95
Axle load4020/6015/6015

Chassis information
Number of axes 3 Type of fuel Diesel
Wheelbase (mm):3500+1250 Front track (mm):1916
passage:3 Rear track (mm):1876/1876
Number of tires 6 Number of spring 10/12
Tire Specifications 12.5R20


Engine info
Engine Model Engine Manufacturer Displacement (ml) Horse power
YC6J180-42
ISDe185 40
Guangxi Yuchai
Dongfeng cummins
6494
6700
180HP
195HP

Detailed parts shown as below:





Advanced service:
